Product Summary
The 2N3904TF is a general purpose (PNP Silicon) PNP switching transistor, which is produced by Fairchild Semiconductor.
Parametrics
2N3904TF absolute maximum ratings: (1)Collector–Emitter Voltage: 40 Vdc; (2)Collector–Base Voltage: 40 Vdc; (3)Emitter-Base Voltage: 5.0 Vdc; (4)Collector Current - Continuous: 200 mAdc; (5)Total Device Dissipation, TA = 25℃: 625mW; (6)Total Power Dissipation, TA = 60℃: 250 mW; (7)Total Device Dissipation, TC = 25℃: ; (8)Operating and Storage Junction Temperature Range: –55 to +150℃.
Features
2N3904TF features: (1)Capable of 600mW of Power Disspation and 200mA Ic; (2)Lead free finish/ROHS compliant; (3)Epoxy meets UL 94 V-O flammability rating; (4)Moisure sensitivity level 1; (5)Through Hole pakage; (6)Marking: type number.

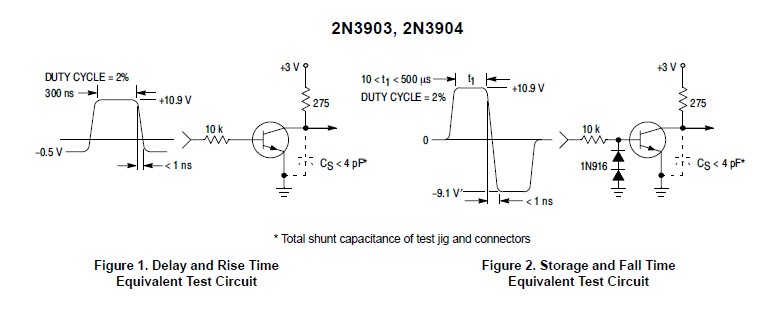

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N3904TF |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN 40V 200mA |
Data Sheet |
|
|
||||||||||||
|
2N3904TFR |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN Transistor General Purpose |
Data Sheet |
|
|
||||||||||||
