Product Summary
The ADV212BBCZ-150 is a single-chip JPEG 2000 codec targeted for video and high bandwidth image compression applications that can benefit from the enhanced quality and features provided by the JPEG 2000(J2K)—ISO/IEC15444-1 image compression standard. The applications of the ADV212BBCZ-150 are Networked video and image distribution systems, Wireless video and image distribution, Image archival/retrieval, Digital CCTV and surveillance systems, Digital cinema systems, Professional video editing and recording, Digital still cameras, Digital camcorders.
Parametrics
ADV212BBCZ-150 absolute maximum ratings: (1)VDD, Supply Voltage, Core:-0.3 V to +1.65 V ; (2)IOVDD, Supply Voltage, Input/Output:-0.3 V to 3.63 V ; (3)Storage Temperature:-65℃ to +150℃; (4)Reflow Soldering:260℃ (20 sec to 40 sec).
Features
ADV212BBCZ-150 features: (1)Complete single-chip JPEG 2000 compression and decompression solution for video and still images ; (2)Identical in pinout and footprint to the ADV202 and supports all the functionality of the ADV202 ; (3)Power reduction of at least 30% compared with ADV202 JTAG/boundary scan support ; (4)Patented SURF (spatial ultraefficient recursive filtering technology enables low power, low cost wavelet-based compression ; (5)Supports both 9/7 and 5/3 wavelet transforms with up to 6 levels of transform; (6)2 or more ADV212s can be combined to support full-frame SMPTE 274M HDTV (1080i) or SMPTE 296M (720p) ; (7)Flexible, asynchronous SRAM-style host interface allows glueless connection to most 16-/32-bit microcontrollers and ASICs ; (8)2.5 V or 3.3 V input/output and 1.5 V core supply ; (9)12 mm × 12 mm, 121-ball CSPBGA with a speed grade of 115 MHz, or 13 mm × 13 mm, 144-ball CSPBGA with a speed grade of 150 MHz.

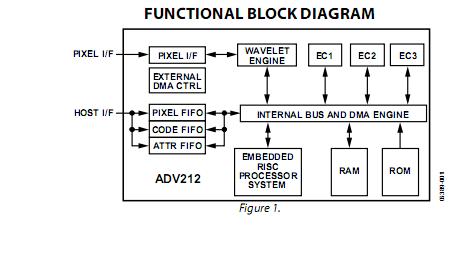

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADV212BBCZ-150 |
|
IC CODEC VID JPEG 2000 144CSPBGA |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
|
ADV212BBCZ-150 |
|
IC CODEC VID JPEG 2000 144CSPBGA |
Data Sheet |
|
|
||||||||||||||||
 |
ADV212-ASD-P160EBZ |
Analog Devices Inc |
BOARD EVAL FOR ADV212 CODEC |
Data Sheet |
|
|
||||||||||||||||
|
ADV212-ASD-P160-EB |
Analog Devices Inc |
BOARD EVAL FOR ADV212 CODEC |
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
ADV212-HD-EB |
|
BOARD EVALUATION FOR ADV212-HD |
Data Sheet |
|
|
||||||||||||||||
 |
ADV212BBCZ-115 |
|
IC CODEC VID JPEG 2000 121CSPBGA |
Data Sheet |
|
|
||||||||||||||||
|
ADV212BBCZRL-150 |
|
IC CODEC VID JPEG 2000 144CSPBGA |
Data Sheet |
|
|
||||||||||||||||
