Product Summary

The PRTR5V0U4D is an integrated quad ultra-low capacitance ESD protection USB which is designed to protect Input/Output (I/O) ports that are sensitive concerning capacitive load, such as USB 2.0, Ethernet, DVI, etc. from destruction by ElectroStatic Discharges (ESD). The PRTR5V0U4D provides protection to downstream signal and supply components from ESD voltages as high as ±8 kV (contact discharge).

Parametrics

PRTR5V0U4D absolute maximum ratings: (1)input voltage: 0 to 5.5 V; (2)electrostatic discharge voltage: all pins; IEC 61000-4-2 level 4; contact discharge, -8 to +8kV; air discharge, -15 to +15 kV; (3)storage temperature: -55 +125℃.

Features

PRTR5V0U4D features: (1)Pb-free and RoHS compliant, dark green; (2)ESD protection compliant to IEC 61000-4-2 level 4, ±8 kV contact discharge; (3)Low voltage clamping due to integrated Zener diode; (4)Four ultra-low input capacitance (1 pF typical) rail-to-rail ESD protection diodes; (5)Small 6-lead SOT457 package.

Diagrams

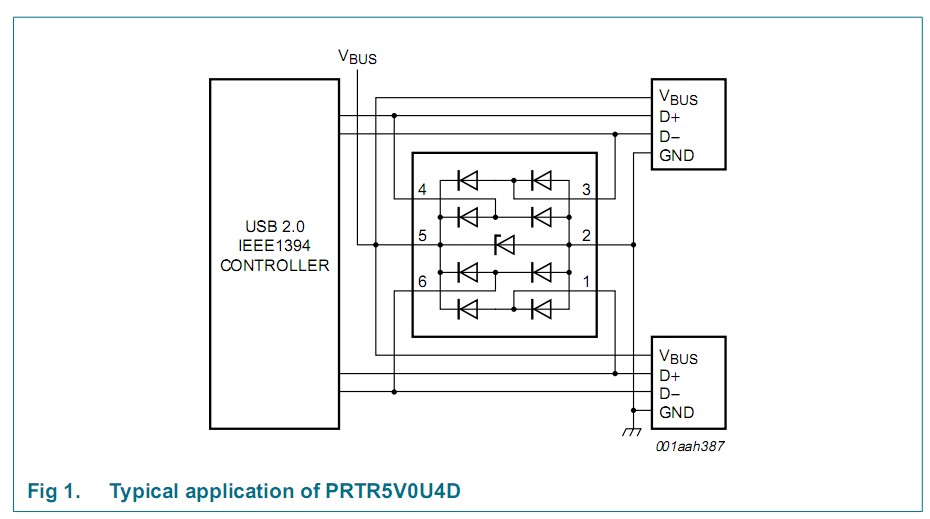

PRTR5V0U4D typical application
