Product Summary

The 74HC244D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL(LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC154D is an octal non-inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE.

Parametrics

74HC244D absolute maximum ratings: (1)supply voltage:-0.5V to 7V; (2)input clamping current:±20mA; (3)output clamping current:±20mA; (4)output current:±35mA; (5)quiescent supply current:70mA; (6)ground current:-70mA; (7)storage temperature:-65 to +150℃.

Features

74HC244D features: (1)Octal bus interface; (2)Non-inverting 3-state outputs; (3)Complies with JEDEC standard no. 7A; (4)Multiple package options; (5)Specified from -40 to +85℃ and from -40 to +125℃.

Diagrams

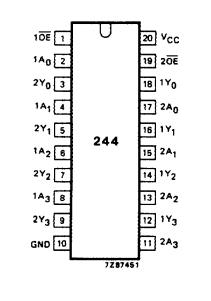

74HC244D pin configuration
