Product Summary
The MBR130TIG is the surface mount Schottky power rectifier which uses the Schottky Barrier principle with a large area metal-to-silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style.
Parametrics
MBR130TIG absolute maximum ratings:(1)Peak Repetitive Reverse Voltage: 30V; (2)Working Peak Reverse Voltage: 30V; (3)DC Blocking Voltage: 30V; (4)Average Rectified Forward Current (Rated VR) TL = 65℃: 1.0A; (5)Non-Repetitive Peak Surge Current: 5.5 A; (6)Storage Temperature Range: -65 to +125 ℃; (7)Operating Junction Temperature: -65 to +125℃; (8)Voltage Rate of Change (Rated VR) dv/dt: 1000 V/μs.
Features
MBR130TIG features: (1)Guardring for Stress Protection; (2)Low Forward Voltage; (3)125℃ Operating Junction Temperature; (4)Epoxy Meets UL 94 V-0 @ 0.125 in; (5)Package Designed for Optimal Automated Board Assembly; (6)ESD Ratings: Machine Model, C; Human Body Model, 3; (7)Pb-Free Packages are Available.

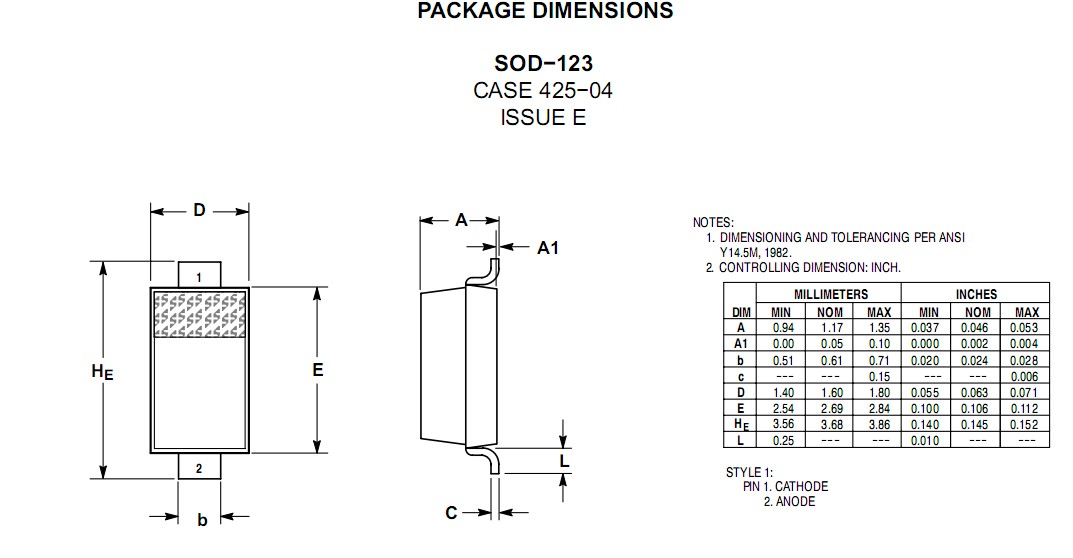

Diagrams
 |
