Product Summary
The LM1117MPX-5.0 is an 800mA low-dropout linear regulator. The LM1117MPX-5.0 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductors industry standard LM317. The LM1117MPX-5.0 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V.
Parametrics
LM1117MPX-5.0 absolute maximum ratings: (1)Maximum Input Voltage (VIN to GND): 20V; (2)Power Dissipation: Internally Limited; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)ESD Tolerance: 2000V.
Features
LM1117MPX-5.0 features: (1)Available 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions; (2)Space Saving SOT-223 and LLP Packages; (3)Current Limiting and Thermal Protection; (4)Output Current 800mA; (5)Line Regulatio0.2% (Max); (6)Load Regulatio0.4% (Max).

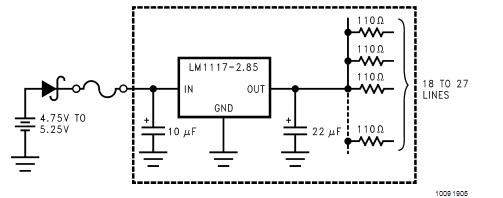

Diagrams
