Product Summary

The IHLP1616ABER1R0M01 is a Low Profile, High Current IHLP Inductor. The applications of it are PDA/notebook/desktop/server applications, High current POL converters, Low profile, high current power supplies, Battery powered devices, DC/DC converters in distributed power systems, DC/DC converter for Field Programmable Gate Array(FPGA).

Parametrics

IHLP1616ABER1R0M01 absolute maximum ratings: (1)Inductance: 1 uH; (2)Tolerance: 20 %; (3)Maximum DC Current: 8.5 Amps; (4)Maximum DC Resistance: 52.5 mOhms; (5)Operating Temperature Range: - 55℃ to + 125℃; (6)Self Resonant Frequency: 5 MHz; (7)Dimensions: 4.06 mm W x 4.45 mm L x 1.2 mm H; (8)Shielding: Shielded; (9)Termination Style: SMD/SMT; (10)Package / Case: 1616 (4040 metric); (11)Packaging: Reel; (12)Product: Low Profile Inductors; (13)Series: IHLP-1616AB-01; (14)Factory Pack Quantity: 4000; (15)Test Frequency: 100 KHz.

Features

IHLP1616ABER1R0M01 features: (1)Shielded construction; (2)Frequency range up to 5.0 MHz; (3)Lowest DCR/μH, in this package size; (4)Handles high transient current spikes without saturation; (5)Ultra low buzz noise, due to composite construction; (6)Compliant to RoHS Directive 2002/95/EC.

Diagrams

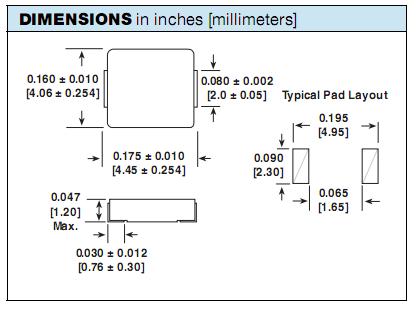

IHLP1616ABER1R0M01 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IHLP1616ABER1R0M01
IHLP1616ABER1R0M01

Vishay/Dale

Power Inductors 1uH 20%

Data Sheet

0-1: $1.55
1-10: $1.26
10-100: $1.05
100-500: $0.84
