Product Summary
The M74VHC1G126DFT2G is an advanced high speed CMOS noninverting 3-state buffer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including a buffered 3-state output which provides high noise immunity and stable output. The M74VHC1G126DFT2G input structure provides protection when voltages up to 7.0 V are applied, regardless of the supply voltage. This allows the M74VHC1G126DFT2G to be used to interface 5.0 V circuits to 3.0 V circuits.
Parametrics
M74VHC1G126DFT2G absolute maximum ratings: (1)DC Supply Voltage: -0.5 to +7.0 V; (2)DC Input Voltage: -0.5 to +7.0 V; (3)DC Output Voltage VCC = 0: -0.5 to 7.0 V; (4)DC Output Voltage, High or Low State: -0.5 to VCC + 0.5 V; (5)Input Diode Current: -20 mA; (6)Output Diode Current VOUT < GND; VOUT > VCC: +20 mA; (7)DC Output Current, per Pin: +25 mA; (8)DC Supply Current, VCC and GND: +50 mA; (9)Power dissipation in still air SC-88A, TSOP-5: 200 mW; (10)Thermal resistance SC-88A, TSOP-5: 333 ℃/W; (11)Lead temperature, 1 mm from case for 10 s: 260 ℃; (12)Junction temperature under bias: +150 ℃; (13)Storage temperature: -65 to +150 ℃.
Features
M74VHC1G126DFT2G features: (1)High Speed: tPD = 3.5 ns (Typ) at VCC = 5.0 V; (2)Low Power Dissipation: ICC = 1 μA (Max) at TA = 25℃; (3)Power Down Protection Provided on Inputs; (4)Balanced Propagation Delays; (5)Pin and Function Compatible with Other Standard Logic Families; (6)Chip Complexity: FETs = 58; Equivalent Gates = 15; (7)Pb?Free Packages are Available.

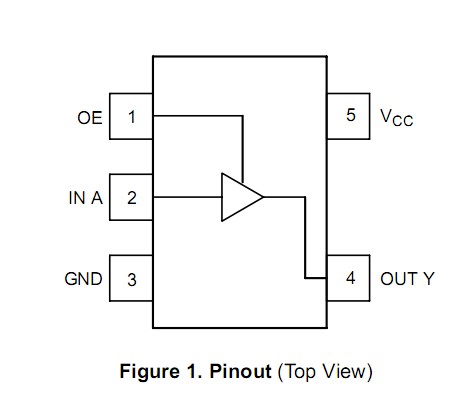

Diagrams
