Product Summary

The TS3USB30RSWR is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (750 MHz) of TS3USB30RSWR allows signals to pass with minimum edge and phase distortion. The TS3USB30RSWR multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. TS3USB30RSWR is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).

Parametrics

TS3USB30RSWR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 7 V; (2)VIN Control input voltage range: –0.5 to 7 V; (3)VI/O Switch I/O voltage range: –0.5 to VCC + 0.3 V; (4)IIK Control input clamp current: –50 mA; (5)II/OK I/O port clamp current: –50 mA; (6)II/O ON-state switch current: ±64 mA; (7)Tstg Storage temperature range: –65 to 150 ℃.

Features

TS3USB30RSWR features: (1)VCC Operation at 3 V and 4.3 V; (2)1.8-V Compatible Control-Pin Inputs; (3)IOFF Supports Partial Power-Down-Mode Operation; (4)ron = 10 Ω Max; (5)Δron <0.35 Ω Typ; (6)Cio(ON) = 7 pF Typ; (7)Low Power Consumption (1 mA Max); (8)–3-dB Bandwidth = 955 MHz Typ; (9)Packaged in 10-pin TQFN (1.4 mm * 1.8 mm).

Diagrams

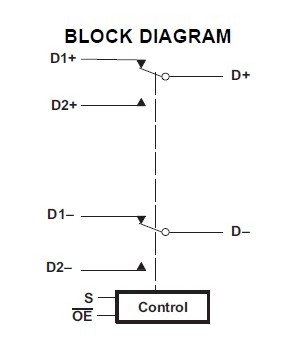

TS3USB30RSWR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS3USB30RSWR
TS3USB30RSWR
Texas Instruments
Power Switch ICs - USB Hi-Spd USB 2.0 1:2 Multipl/Demult Sw
Data Sheet
0-1: $1.05
1-25: $0.85
25-100: $0.76
100-250: $0.68
