Product Summary
The W83310 is a linear regulator which provides achieves 1.5Amp bi-directional sinking and driving capability for DDR SDRAM bus terminator application. The chip simply implements a stable power supply which can track half of input power dynamically for bus terminator with a single chip; that is the chip integrates two power MOSFETs. There is no any external power device needed. The W83310 is promoted with small footprint 8-SOP 150mil package.
Parametrics
W83310 Characteristics: (1)Output Offset Voltage VOS: -5 to +5 mV; (2)Load Regulation: 0.8%; (3)Input Voltage Range, VIN: 2.5V; VCNTL: 3.3V; (4)Operating Current of VCNTL ICNTL: 0.5 to 1 mA; (5)Shutdown Threshold Trigger: 0.4 V; 0.1 V; (6)Shutdown Current: 10 uA.
Features
W83310 features: (1)Regulates a bi-directional power with driving and sinking capability; (2)Provides achieve 1.5Amp driving and sinking current; (3)Power MOSFET integrated; (4)Low external component count; (5)Low output voltage offset; (6)Operates with +5V,+3.3V and +2.5V power; (7)Small package; (8)Low cost and easy to use.

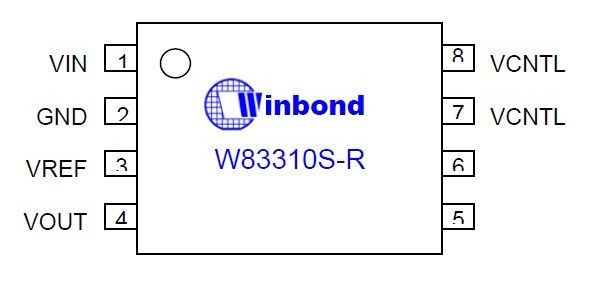

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 W83310UG TR |
|
IC REG BUS TERM SEL1.8A TO-252 |
Data Sheet |
|
|
||||||
|
W83310UG |
Nuvoton Technology Corporation of America |
IC REG BUS TERM SEL1.8A TO-252 |
Data Sheet |
|
|
||||||
|
W83310S-R2 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83310S-R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83310S-N |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
W83310SG TR |
|
IC REG BUS TERM 1.8A 8-SOIC |
Data Sheet |
|
|
||||||
|
W83310SG |
Nuvoton Technology Corporation of America |
IC REG BUS TERM 1.8A 8-SOIC |
Data Sheet |
|
|
||||||
|
W83310G-R2 TR |
|
IC REG BUS TERM 1.8A 8-SOIC |
Data Sheet |
|
|
||||||
