Product Summary

The SN74LVC14AD hex Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation.

Parametrics

SN74LVC14AD absolute maxing ratings: (1)VCC Supply voltage range: min=-0.5V, max=6.5V; (2)VI Input voltage range: min=-0.5V, max=6.5V; (3)VO Output voltage range: min=-0.5V, max=VCC+0.5V; (4)IIK Input clamp current VI < 0: max=-50mA; (5)IOK Output clamp current VO < 0: max=-50mA; (6)IO Continuous output current: max=±50mA; (7)Continuous current through VCC or GND: max=±100mA; (8)Tstg Storage temperature range: min=-65℃, max=150℃; (9)Ptot Power dissipation TA=-40℃ to 125℃: max=500mW.

Features

SN74LVC14AD features: (1)Operate From 1.65 V to 3.6 V; (2)Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃; (3)Specified From –40℃ to 85℃, –40℃ to 125℃, and –55℃ to 125℃; (4)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (5)Inputs Accept Voltages to 5.5 V ; (6)Max tpd of 6.4 ns at 3.3 V; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101); (8)Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25℃.

Diagrams

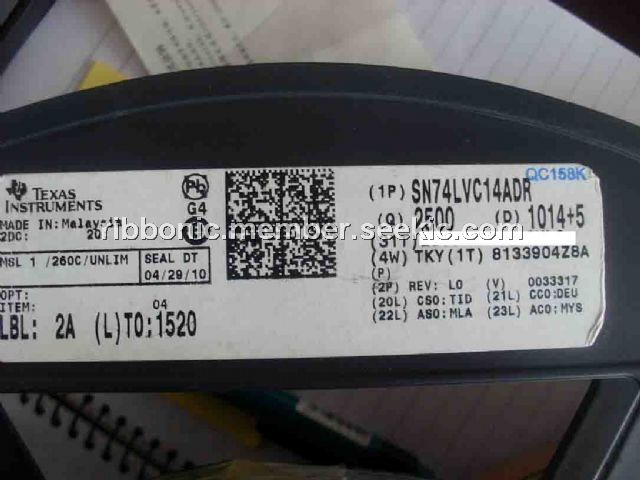

SN74LVC14AD diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC14AD
SN74LVC14AD

Texas Instruments

Inverters Hex Schmitt-Trigger

Data Sheet

0-1: $0.26
1-25: $0.20
25-100: $0.14
100-250: $0.14
SN74LVC14ADBR
SN74LVC14ADBR

Texas Instruments

Inverters Hex Schmitt Trigger

Data Sheet

0-1: $0.27
1-25: $0.18
25-100: $0.15
100-250: $0.12
SN74LVC14ADG4
SN74LVC14ADG4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.22
1-25: $0.17
25-100: $0.14
100-250: $0.12
SN74LVC14ADE4
SN74LVC14ADE4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.31
1-25: $0.20
25-100: $0.16
100-250: $0.14
SN74LVC14ADBRE4
SN74LVC14ADBRE4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.19
1-25: $0.16
25-100: $0.13
100-250: $0.11
SN74LVC14ADBRG4
SN74LVC14ADBRG4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.19
1-25: $0.16
25-100: $0.13
100-250: $0.11
SN74LVC14ADRG3
SN74LVC14ADRG3

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
SN74LVC14ADRG4
SN74LVC14ADRG4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.28
1-25: $0.18
25-100: $0.15
100-250: $0.12
