Product Summary

The IP4220CZ6,125 is a Dual USB 2.0. It is designed to protect I/Os being sensitive concerning capacitive load, such as USB 2.0, Ethernet, DVI etc. from destruction by Electro Static Discharges (ESD). Therefore, the IP4220CZ6,125 incorporates four pairs of ultra-low capacity rail-to-rail diodes plus an additional Zener diode to provide protection to downstream signal and supply components from Electrostatic Discharge (ESD) voltages as high as ±8 kV contact discharge. The applications of the IP4220CZ6,125 are Cellular and PCS mobile handsets, PC-/Notebook USB2.0/IEEE1394 ports, DVI interfaces, Cordless telephones, Wireless data (WAN/LAN) systems, PDAs.

Parametrics

IP4220CZ6,125 absolute maximum ratings: (1)DC input voltage range:0V to +5.5V; (2)Electrostatic Discharge, all pins:-8kV to +8kV; (3)Device storage temperature range:-55 to +125℃; (4)Operating temperature range:-40 to +85℃.

Features

IP4220CZ6,125 features: (1)ESD IEC 61000-4-2 level 4, ± 8kV contact discharge; (2)compliant protection; (3)Four ultra-low input capacitance (1 pF typ.); (4)ESD rail-to-rail protection diodes; (5)Low voltage clamping due to integrated Zener diode ; (6)Small 6 lead SO6 (SOT457) package.

Diagrams

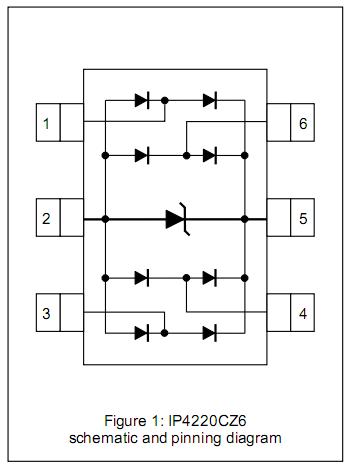

IP4220CZ6,125 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

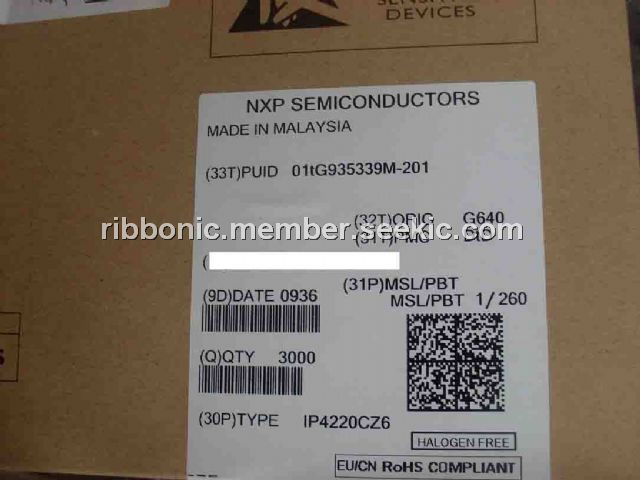

IP4220CZ6,125
IP4220CZ6,125

NXP Semiconductors

ESD Suppressors USB2.0 ESD PROTECT DUAL

Data Sheet

0-1: $0.26
1-25: $0.18
25-100: $0.16
100-250: $0.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IP4220CZ6,125
IP4220CZ6,125

NXP Semiconductors

ESD Suppressors USB2.0 ESD PROTECT DUAL

Data Sheet

0-1: $0.26
1-25: $0.18
25-100: $0.16
100-250: $0.11
