Product Summary

The ISL6334ACRZ is a VR11.1, 4-phase PWM controller with light load efficiency enhancement and load current monitoring. The ISL6334ACRZ controls microprocessor core voltage regulation by driving up to 4 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation, and smaller implementation area. Microprocessor loads of the ISL6334ACRZ can generate load transients with extremely fast edge rates and requires high efficiency at light load.

Parametrics

ISL6334ACRZ absolute maximum ratings: (1)Supply Voltage, VCC: +6V; (2)All Pins: GND -0.3V to VCC + 0.3V; (3)Human Body Model: 2kV; (4)Machine Model: 200V; (5)Charged Device Model: 1.5kV.

Features

ISL6334ACRZ features: (1)Intel VR11.1 Compliant; (2)Proprietary Active Pulse Positioning (APP) and Adaptive Phase Alignment (APA) Modulation Scheme; (3)Proprietary Active Phase Adding and Dropping with Diode Emulation Scheme For High Light Load Efficiency; (4)Precision Multiphase Core Voltage Regulation; (5)Precision resistor or DCR Differential Current Sensing; (6)Microprocessor Voltage Identification Input; (7)Average Overcurrent Protection and Channel Current Limit; (8)Precision Overcurrent Protection on IMON Pin; (9)Thermal Monitoring and Overvoltage Protection; (10)Integrated Programmable Temperature Compensation; (11)Integrated Open Sense Line Protection; (12)1- to 4-Phase Operation, Coupled Inductor Compatibility; (13)Adjustable Switching Frequency up to 1MHz Per Phase; (14)Package Option: QFN Compliant to JEDEC PUB95 MO-220 QFN - Quad ; (15)Flat No Leads - Product Outline; (16)Pb-Free (RoHS Compliant).

Diagrams

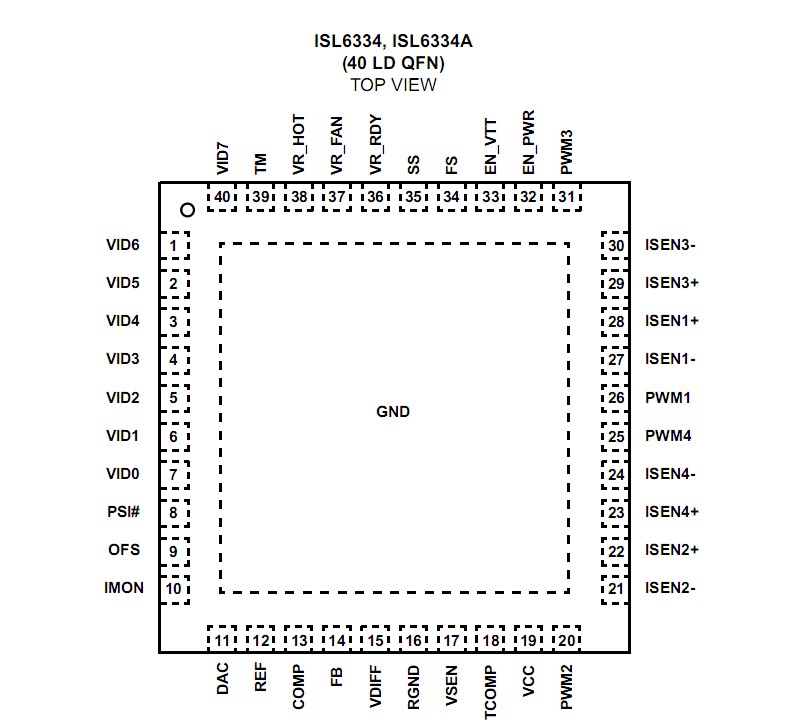

ISL6334ACRZ pinout

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISL6334ACRZ
ISL6334ACRZ


IC CTRLR PWM 4PHASE BUCK 40-QFN

Data Sheet

0-1000: $1.50
ISL6334ACRZR5368
ISL6334ACRZR5368


IC CTRLR PWM 4PHASE BUCK 40QFN

Data Sheet

0-1000: $1.58
ISL6334ACRZ-T
ISL6334ACRZ-T


IC CTRLR PWM 4PHASE BUCK 40-QFN

Data Sheet

0-4000: $1.50
ISL6334ACRZ-TR5368
ISL6334ACRZ-TR5368


IC CTRLR PWM 4PHASE BUCK 40QFN

Data Sheet

0-4000: $1.58
