MC34063ACD-TR

monolithic control circuit, 8SOIC, 50 V, activecurrent limiting, 2% reference accuracy

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.20

PartNumber:: MC34063ACD-TR

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mr Maxisua zhou's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-08

From Other Seller

Part Number:MC34063ACD-TR
US $0.80 - 1.20
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC34063ACD-TR is a monolithic control circuit delivering the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage of MC34063ACD-TR is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components the MC34063ACD-TR is designed for Step-Down, Step-Up and Voltage-Invertingapplications.

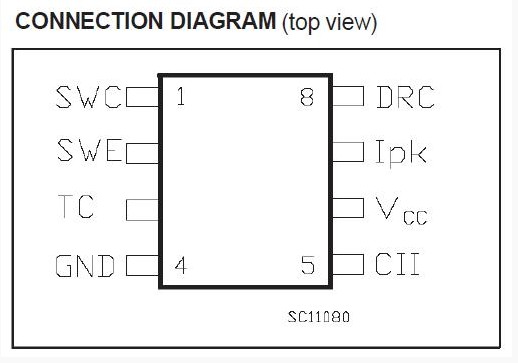

Parametrics

MC34063ACD-TR absolute maximum ratings: (1)Power Supply Voltage: 50 V; (2)Vir Comparator Input Voltage Range: -0.3 to 40 V; (3)VSWC Switch Collector Voltage: 40 V; (4)VSWE Switch Emitter Voltage (VSWC = 40V): 40 V; (5)VCE Switch Emitter to Collector Voltage: 40 V; (6)Vdc Driver Collector Voltage: 40 V; (7)Idc Driver Collector Current: 100 mA; (8)ISW Switch Current: 1.5 A; (9)Ptot Power Dissipation at Tamb = 25 ℃: 1.25 W (for Plastic Package), 0.625 W (for SOIC Package); (10)Operating Ambient Temperature Range: 0 to 70 ℃ (for AC SERIES), -40 to 85 ℃ (for AB SERIES); (11)Storage Temperature Range: -40 to 150 ℃.

Features

MC34063ACD-TR features: (1)output switch current in excess of 1.5A; (2)2% reference accuracy; (3)low quiescent current: 2.5mA (TYP.); (4)operating from 3V to 40V; (5)frequency operation to 100KHz; (6)activecurrent limiting.
