Product Summary

The PCM1770PWR is a CMOS, monolithic, integrated circuit which includes stereo digital-to-analog converters, headphone circuitry, and support circuitry in small TSSOP-16 and VQFN-20 packages. The PCM1770PWR accepts several industry standard audio data formats with 16- to 24-bit data, left-justified, I2S, etc., providing easy interfacing to audio DSP and decoder device. Sampling rates up to 50 kHz are supported. A full set of user-programmable functions are accessible through a 3-wire serial control port, which supports register write
functions.

Parametrics

PCM1770PWR absolute maximum ratings: (1)Supply voltage: VCC, VHP 4 V; (2)Supply voltage differences: VCC, VHP ±0.1 V; (3)Ground voltage differences: ±0.1 V; (4)Digital input voltage: –0.3 V to 4.0 V; (5)Input current (any terminals except supplies): ±10 mA; (6)Operating temperature: –40 to 125℃; (7)Storage temperature: –55 to 150℃; (8)Junction temperature: 150℃; (9)Lead temperature (soldering): 260℃, 5 s; (10)Package temperature (IR reflow, peak): 260℃.

Features

PCM1770PWR features: (1)Multilevel DAC Including Headphone Amplifier; (2)Analog Performance (VCC, VHP = 2.4 V); (3)1.6-V to 3.6-V Single Power Supply; (4)Low Power Dissipation: 6.5 mW at VCC,VHP = 2.4 V; (5)System Clock: 128 fS, 192 fS, 256 fS, 384 fS; (6)Sampling Frequency: 5 kHz to 50 kHz; (7)Software Control (PCM1770); (8)Pop-Noise-Free Circuit; (9)3.3-V Tolerant; (10)Packages: TSSOP-16 and VQFN-20, Lead Free.

Diagrams

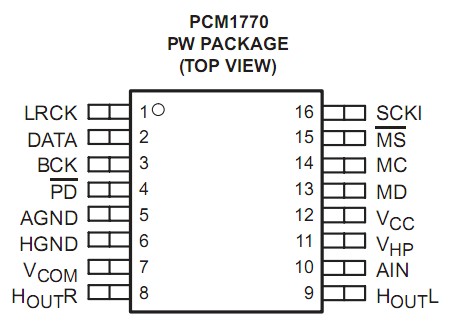

PCM1770PWR pakage

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PCM1770PWR
PCM1770PWR

Texas Instruments

Audio D/A Converter ICs 24-Bit Lo-Pwr Stereo DAC w/Headphone Amp

Data Sheet

0-1490: $1.05
1490-2000: $1.01
2000-5000: $0.97
PCM1770PWRG4
PCM1770PWRG4

Texas Instruments

Audio D/A Converter ICs 24-Bit Lo-Pwr Stereo DAC w/Headphone Amp

Data Sheet

0-1490: $1.05
1490-2000: $1.01
2000-5000: $0.97
