Product Summary

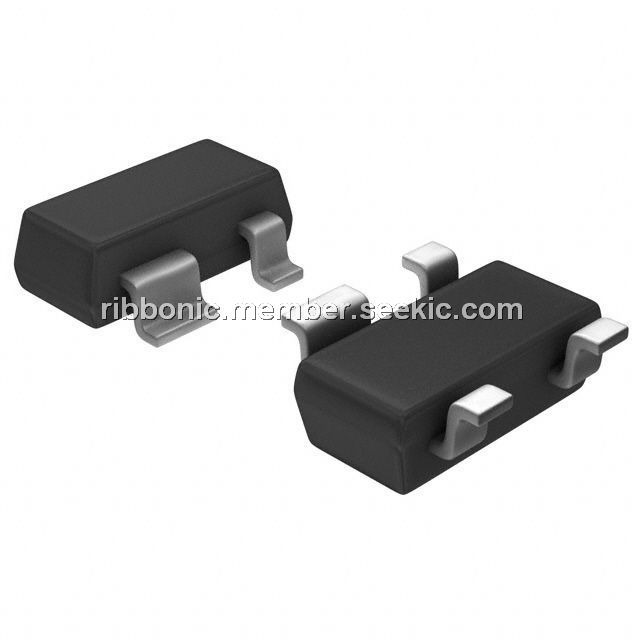

The PRTR5V0U2X is the ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT143B Surface Mounted Device (SMD) plastic package designed to protect two Hi-Speed data lines or high frequency signal lines from the damage caused by ESD and other transients. The PRTR5V0U2X incorporates two pairs of ultra low capacitance rail-to-rail diodes as well as an additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
Parametrics
PRTR5V0U2X absolute maximum ratings: (1)reverse stand-off voltage: 5.5 V; (2)input to ground capacitance: 1 pF; (3)supply capacitance; pin 4 to ground, f = 1 MHz; VCC = 0 V: 16 pF.
Features
PRTR5V0U2X features: (1)ESD protection of two Hi-Speed data lines or high frequency signal lines; (2)Ultra low input to ground capacitance: C(I/O-GND) = 1 pF; (3)ESD protection up to 8 kV; (4)IEC 61000-4-2, level 4 (ESD); (5)Very low clamping voltage due to an integrated additional ESD protection diode; (6)Very low leakage current; (7)Small 4 lead SOT143B SMD plastic package.

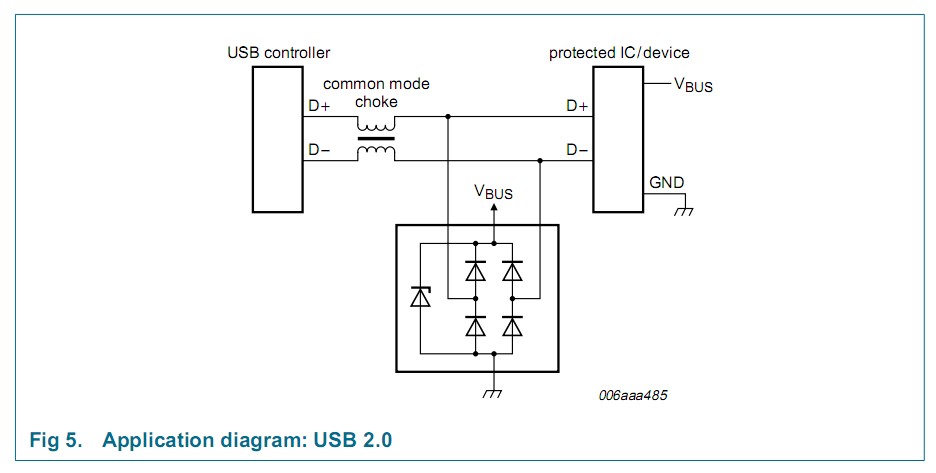

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PRTR5V0U2X |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PRTR5V0U2X,215 |
NXP Semiconductors |
ESD Suppressors 5.5V DUAL R-R ESD ULTRA LOW CAP |
Data Sheet |
|
|
||||||||||||
