BQ24070

Li-Ion and Li-Pol, Charge Management IC, EVM, –0.3 V to 18 V, Power Supplement Mode, 1.5 A, single chip, QFN-20

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.80~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.80~3.00

PartNumber:: BQ24070

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mr Maxisua zhou's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:BQ24070
US $2.80 - 3.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

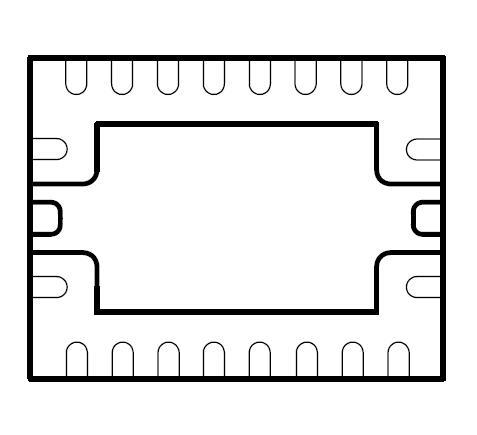

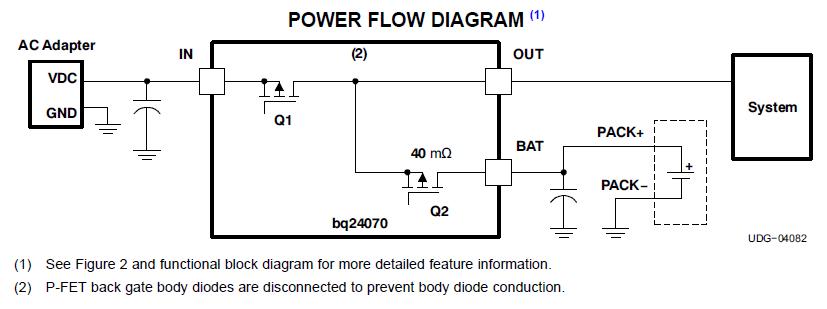

The BQ24070 is a highly integrated Li-ion linear charger and system power-path management device targeted at space-limited portable applications. The BQ24070 offers DC supply (AC adapter) power-path management with autonomous power-source selection, power FETs and current sensors, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. The applications of the BQ24070 include Smart Phones and PDA, MP3 Players, Digital Cameras and Handheld Devices, Internet Appliances.

Parametrics

BQ24070 absolute maximum ratings: (1)Input voltage IN (DC voltage wrt (with respect to) VSS): –0.3 V to 18 V; (2)BAT, CE, DPPM, PG, Mode, OUT, ISET1, ISET2, STAT1, STAT2, TS, (all DC voltages wrt VSS): –0.3 V to 7 V; (3)Input voltage: VREF (DC voltage wrt VSS): –0.3 V to VO (OUT) + 0.3 V, TMR: –0.3 V to VO + 0.3 V; (4)Input current: 3.5 A; (5)OUT: 4 A; (6)Output current: –4 A to 3.5 A; (7)Output sink current:, 1.5 mA; (8)Storage temperature range: –65℃ to 150℃; (9)Junction temperature range: –40℃ to 150℃; (10)Lead temperature (soldering, 10 seconds): 300℃.
