Product Summary
The BAV70 is a high-speed double diode for high-speed switching in thick and thin-film circuits.
Parametrics
BAV70 absolute maximum ratings: (1)repetitive peak reverse voltage: 85 V max; (2)continuous reverse voltage: 75 V max; (3)ontinuous forward current: 215 mA max; (4)repetitive peak forward current: 450 mA max; (5)non-repetitive peak forward current: att = 1 us: 4 A; at t = 1 ms: 1 A; at t = 1 s: 0.5 A; (6)total power dissipation: 250 mW max; (7)storage temperature: -65 +150 ℃; (8)junction temperature: 150 ℃ max.
Features
BAV70 features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 70 V; (4)Repetitive peak reverse voltage: max. 75 V; (5)Repetitive peak forward current: max. 450 mA.

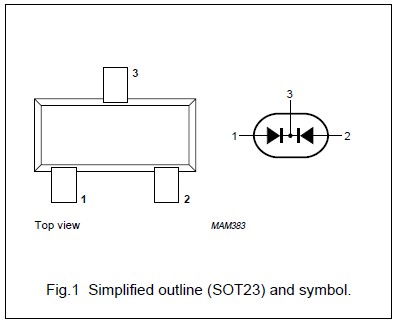

Diagrams
