Product Summary

The MC33078 is a Low Noise Dual/Quad Operational Amplifier. It is a high quality monolithic amplifier employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications.

Parametrics

MC33078 absolute maximum ratings: (1)Supply Voltage (VCC to VEE): +36 V; (2)Output Short Circuit Duration: Indefinite sec; (3)Maximum Junction Temperature: +150 ℃; (4)Storage Temperature: -60 to +150 ℃; (5)ESD Protection at any Pin: 600V; (6)Operating Temperature Range: -40 to +85 ℃.

Features

MC33078 features: (1)Dual Supply Operation: ±5.0 V to ±18 V; (2)Low Voltage Noise: 4.5 nV/√Hz; (3)Low Input Offset Voltage: 0.15 mV; (4)Low T.C. of Input Offset Voltage: 2.0 μV/℃; (5)Low Total Harmonic Distortion: 0.002%; (6)High Gain Bandwidth Product: 16 MHz; (7)High Slew Rate: 7.0 V/μs; (8)High Open Loop AC Gain: 800 @ 20 kHz; (9)Excellent Frequency Stability; (10)Large Output Voltage Swing: +14.1 V/ -14.6 V; (11)ESD Diodes Provided on the Inputs.

Diagrams

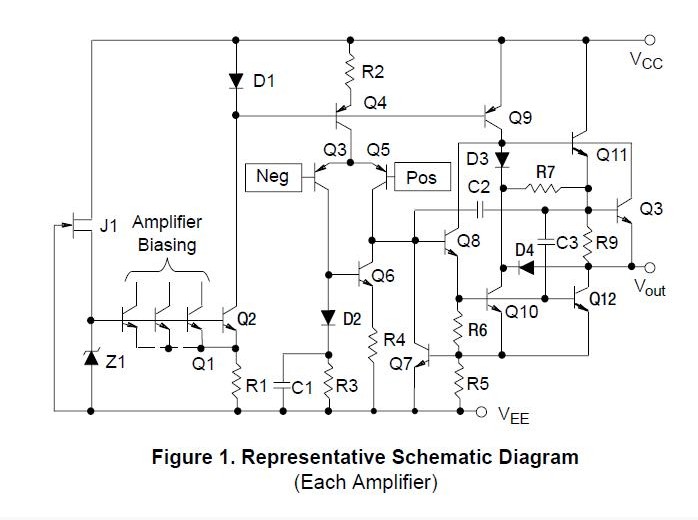

MC33078 block diagram
