Product Summary

The BQ24085DRCR is a 750 mA single-chip Li-Ion/Li-Pol charge management IC with thermal regulation. The BQ24085DRCR offers a variety of safety features and functional options, while still implementing a complete charging system in a small package. The BQ24085DRCR automatically restarts the charge if the battery voltage falls below an internal threshold; sleep mode is set when the external input supply is removed. The applications of it are PDA, MP3 Players, Digital Cameras, Internet Appliances and Handheld Devices.

Parametrics

BQ24085DRCR absolute maximum ratings: (1)Supply voltage (IN with respect to Vss):-0.3 V to 20 V; (2)Input voltage on IN, STATx, PG , TS, CE , TMR (all with respect to Vss): -0.3 V to V(IN); (3)Input voltage on OUT, BAT, ISET (all with respect to Vss):-0.3 V to 7 V; (4)Output sink current (STATx) + PG:15 mA; (5)Output current (OUT pin):2 A; (6)Operating free-air temperature range:-40℃ to 155℃; (7)Storage temperature range:-65℃ to 150℃; (8)Junction temperature range:-40℃ to 150℃.

Features

BQ24085DRCR features: (1)Ideal for Low-Dropout Designs for Single-Cell Li-Ion or Li-Pol Packs in Space Limited Applications; (2)Integrated Power FET and Current Sensor for up to 750-mA Charge Applications ; (3)Reverse Leakage Protection Prevents Battery Drainage; (4)± 0.5% Voltage Regulation Accuracy; (5)Thermal Regulation Maximizes Charge Rate; (6)Charge Termination by Minimum Current and Time; (7)Precharge Conditioning With Safety Timer; (8)Status Outputs for LED or System Interface Indicate Charge, Fault, and Power Good Outputs; (9)Short-Circuit and Thermal Protection; (10)Automatic Sleep Mode for Low Power Consumption; (11)Small 3 × 3 mm MLP Package; (12)Selectable Battery Insertion and Battery Absent Detection.

Diagrams

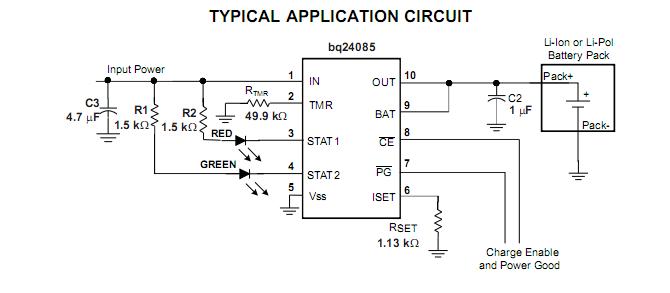

BQ24085DRCR circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BQ24085DRCR
BQ24085DRCR
Texas Instruments
Battery Management 750mA SG-CHIP Li-Ion Li-Pol CHG MGMT IC
Data Sheet
0-1: $1.72
1-25: $1.39
25-100: $1.25
100-250: $1.11
BQ24085DRCRG4
BQ24085DRCRG4
Texas Instruments
Battery Management Li-Ion Batt Charger
Data Sheet
0-2150: $0.76
2150-3000: $0.72
3000-6000: $0.69
