EP9315-IBZ

System-on-Chip Processor, 352PBGA, 200MHz, 1.65 V ~ 3.6 V, EP9315-IBZ, Cirrus Logic

Rated 5 Rating 5 | reviews | Write a review

Price:: US $28.60~30.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $28.60~30.50

PartNumber:: EP9315-IBZ

Brand:: Cirrus Logic - Cirrus | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mr Maxisua zhou's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-01

From Other Seller

Part Number:EP9315-IBZ
US $28.60 - 30.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

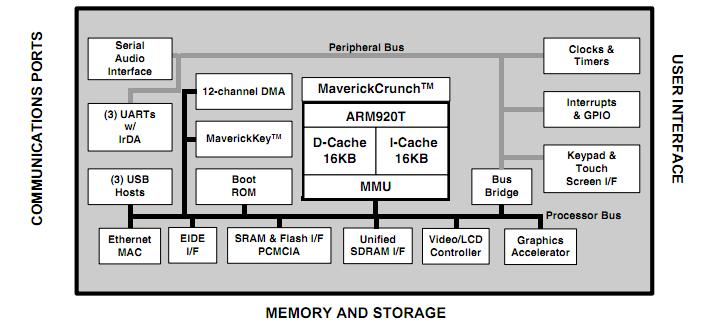

The EP9315-IBZ is an Enhanced Universal Platform System-on-Chip Processor. The EP9315-IBZ is an ARM920T-based system-on-a-chip design with a large peripheral set targeted to a variety of applications: Thin Client Computers for Business and Home, Internet Radio, Internet Access Devices, Industrial Computers, Specialized Terminals, Point-of-sale Terminals, Test and Measurement Equipment. The ARM920T microprocessor core with separate 16-kbyte, 64-way set-associative instruction and data caches is augmented by the MaverickCrunch co-processor, enabling high-speed floating point calculations.

Parametrics

EP9315-IBZ absolute maximum ratings: (1)Total Power Dissipation: 2 W; (2)Input Current per Pin, DC (Except supply pins): ±10 mA; (3)Output current per pin, DC: ±50mA; (4)Digital Input voltage: -0.3 to RVDD+0.3 V; (5)Storage temperature: -40 to +125℃.

Features

EP9315-IBZ features: (1)200-MHz ARM920T Processor; (2)Maverick Crunch Math Engine; (3)MaverickKey IDs; (4)Integrated Peripheral Interfaces; (5)12 Direct Memory Access (DMA) Channels ; (6)Real-time Clock with Software Trim ; (7)Dual PLL controls all clock domains; (8)Watchdog Timer; (9)Two General-purpose 16-bit Timers; (10)One General-purpose 32-bit Timer; (11)One 40-bit Debug Timer; (12)Interrupt Controller; (13)Boot ROM; (14)352-pin PBGA.
