ATMEGA162-16AU

8-bit, 44-TQFP, Microcontrollers (MCU), low-power, CMOS, AVR, 16K, 16MHZ, 5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.50~8.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.50~8.50

PartNumber:: ATMEGA162-16AU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mr Maxisua zhou's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-25

From Other Seller

Part Number:ATMEGA162-16AU
US $7.50 - 8.50
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

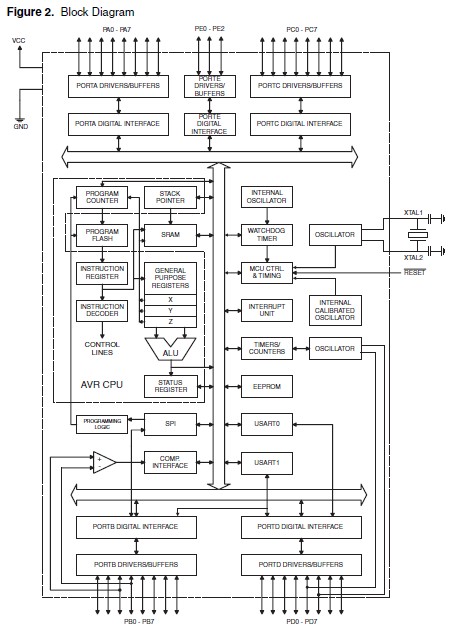

The ATMEGA162-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA162-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The device is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, In-Circuit Emulators, and evaluation kits.

Parametrics

ATMEGA162-16AU absolute maximum ratings:(1)Operating Temperature:-55℃to +125℃; (2)Storage Temperature:-65℃to +150℃; (3)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (5)Maximum Operating Voltage:6.0V; (6)DC Current per I/O Pin:40.0 mA; (7)DC Current VCC and GND Pins:200.0 mA PDIP,400 mA TQFP/MLF.

Features

ATMEGA162-16AU features:(1)High-performance, Low-power AVR8-bit Microcontroller; (2)Advanced RISC Architecture:131 Powerful Instructions Most Single-clock Cycle Execution;32 x 8 General Purpose Working Registers;Fully Static Operation; Up to 16 MIPS Throughput at 16 MHz;On-chip 2-cycle Multiplier; (3)Non-volatile Program and Data Memories:16K Bytes of In-System Self-programmable Flash Endurance: 10,000 Write/Erase Cycles; Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation; 512 Bytes EEPROM Endurance: 100,000 Write/Erase Cycles;1K Bytes Internal SRAM;Up to 64K Bytes Optional External Memory Space;Programming Lock for Software Security; (4)JTAG (IEEE std. 1149.1 Compliant) Interface:Boundary-scan Capabilities According to the JTAG Standard;Extensive On-chip Debug Support;Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface.
