Product Summary

The ATMEGA88V-10AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA88V-10AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA88V-10AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

ATMEGA88V-10AU features: (1)High Performance, Low Power AVR 8-Bit Microcontroller; (2)Advanced RISC Architecture: 131 Powerful Instructions ?Most Single Clock Cycle Execution, 32 x 8 General Purpose Working Registers, Fully Static Operation, Up to 20 MIPS Throughput at 20 MHz, On-chip 2-cycle Multiplier; (3)High Endurance Non-volatile Memory segments: 4/8/16K Bytes of In-System Self-programmable Flash program memory, 256/512/512 Bytes EEPROM, 512/1K/1K Bytes Internal SRAM, Write/Erase cyles: 10,000 Flash/100,000 EEPROM, Data retention: 20 years at 85℃/100 years at 25℃.

Diagrams

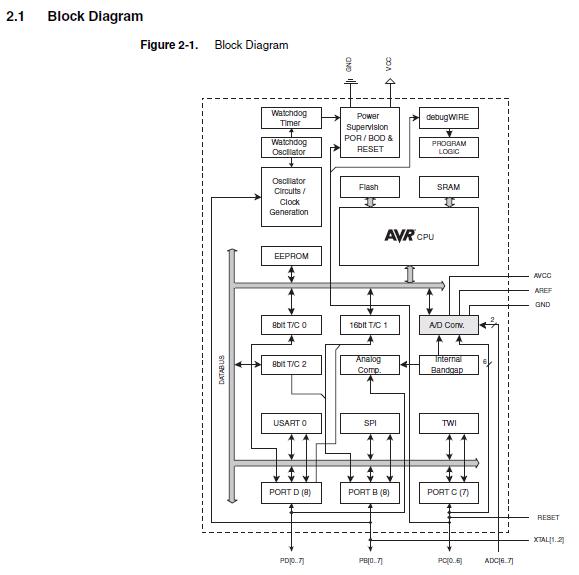

ATMEGA88V-10AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ATmega88V-10AU
ATmega88V-10AU
Atmel
8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 23 I/O Pins
Data Sheet
0-1: $1.65
1-10: $1.45
10-25: $1.34
25-100: $1.31
ATMEGA88V-10AUR
ATMEGA88V-10AUR
Atmel
8-bit Microcontrollers (MCU) AVR 8K FLSH 1K SRAM 512B EE-10MHz
Data Sheet
0-1670: $1.33
1670-2000: $1.33
