Product Summary
The EP9302-CQZ is a High-speed ARM9 System-on-chip Processor with MaverickCrunch. It is targeted to a variety of applications: Industrial controls, Digital media servers, Integrated home media gateways, Digital audio jukeboxes, Streaming audio players, Set-top boxes, Point-of-sale terminals, Thin clients, Biometric security systems, GPS & fleet management systems, Educational toys, Industrial computers, Industrial hand-held devices, Voting machines and Medical equipment. The EP9302-CQZ is a high-performance, low-power RISC-based, single-chip computer built around an ARM920T microprocessor core with a maximum operating clock rate of 200 MHz (184 MHz for industrial conditions). The ARM core operates from a 1.8 V supply, while the I/O operates at 3.3 V with power usage between 100 mW and 750 mW (dependent on speed).
Parametrics
EP9302-CQZ absolute maximum ratings: (1)Total Power Dissipation: 2 W; (2)Input Current per Pin, DC (Except supply pins): ±10 mA; (3)Output current per pin, DC: ±50mA; (4)Digital Input voltage: -0.3 to RVDD+0.3 V; (5)Storage temperature: -40 to +125℃.
Features
EP9302-CQZ features: (1)200-MHz ARM920T Processor; (2)MaverickCrunch Math Engine; (3)MaverickKey IDs; (4)Integrated Peripheral Interfaces; (5)12 Direct Memory Access (DMA) Channels ; (6)Real-time Clock with Software Trim ; (7)Dual PLL controls all clock domains.; (8)Watchdog Timer; (9)Two General-purpose 16-bit Timers; (10)One General-purpose 32-bit Timer; (11)One 40-bit Debug Timer; (12)Interrupt Controller; (13)Boot ROM; (14)Package: 208-pin LQFP.

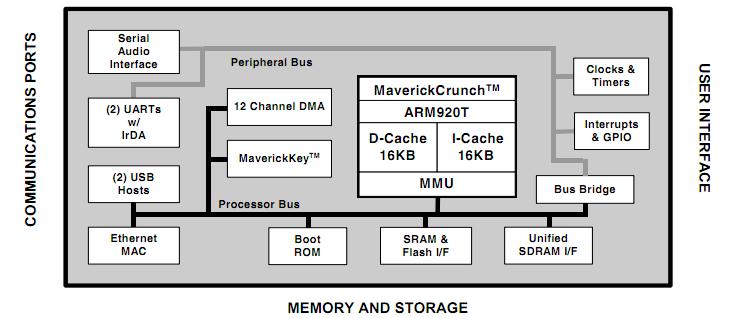

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP9302-CQZ |
Cirrus Logic |
Microprocessors (MPU) IC Hi-Perform ARM9 SOC Processor |
Data Sheet |
|
|
||||||||||||
 |
