Product Summary
The EP9315-CBZ is an Enhanced Universal Platform System-on-Chip Processor. The EP9315-CBZ is an ARM920T-based system-on-a-chip design with a large peripheral set targeted to a variety of applications: Thin Client Computers for Business and Home, Internet Radio, Internet Access Devices, Industrial Computers, Specialized Terminals, Point-of-sale Terminals, Test and Measurement Equipment. The ARM920T microprocessor core with separate 16-kbyte, 64-way set-associative instruction and data caches is augmented by the MaverickCrunch co-processor, enabling high-speed floating point calculations.
Parametrics
EP9315-CBZ absolute maximum ratings: (1)Total Power Dissipation: 2 W; (2)Input Current per Pin, DC (Except supply pins): ±10 mA; (3)Output current per pin, DC: ±50mA; (4)Digital Input voltage: -0.3 to RVDD+0.3 V; (5)Storage temperature: -40 to +125℃.
Features
EP9315-CBZ features: (1)200-MHz ARM920T Processor; (2)Maverick Crunch Math Engine; (3)MaverickKey IDs; (4)Integrated Peripheral Interfaces; (5)12 Direct Memory Access (DMA) Channels ; (6)Real-time Clock with Software Trim ; (7)Dual PLL controls all clock domains; (8)Watchdog Timer; (9)Two General-purpose 16-bit Timers; (10)One General-purpose 32-bit Timer; (11)One 40-bit Debug Timer; (12)Interrupt Controller; (13)Boot ROM; (14)352-pin PBGA.

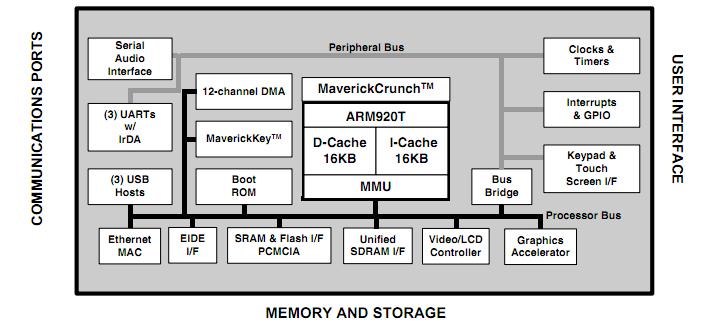

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EP9315-CBZ |
Cirrus Logic |
Microprocessors (MPU) IC Universl Pltform ARM9 SOC Prcessor |
Data Sheet |
|
|
|||||||||||||
