Product Summary
The IRL3713STRLPBF is a HEXFET power MOSFET. The applications of the IRL3713PBF are:High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use; High Frequency Buck Converters for Computer Processor Power; 100% RG Tested; Lead-Free.
Parametrics
IRL3713STRLPBF absolute maximum ratings: (1)VDS Drain-Source Voltage: 30V; (2)VGS Gate-to-Source Voltage: ±20V; (3)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 260A; (4)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 180A; (5)IDM Pulsed Drain Current: 1040A; (6)PD @TC = 25℃ Maximum Power Dissipation: 330W; (7)PD @Tc = 100℃ Maximum Power Dissipation: 170W; (8)Linear Derating Factor: 2.2W/℃; (9)TJ, TSTG Junction and Storage Temperature Range: -55 to +175℃.
Features
IRL3713STRLPBF features: (1)Ultra-Low Gate Impedance; (2)Very Low RDS(on) at 4.5V VGS; (3)Fully Characterized Avalanche Voltage and Current.

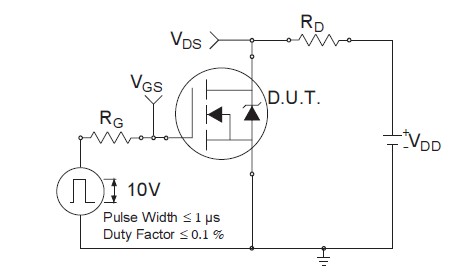

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRL3713STRLPBF |
International Rectifier |
MOSFET MOSFT 30V 200A 3mOhm 75nC Log Lvl |
Data Sheet |
|
|
||||||||||||
