Product Summary

The CM2020-00TROSTR-ND HDMI Transmitter Port Protection and Interface device is specifically designed for next generation HDMI source interface protection. An integrated package provides all ESD, level shift, overcurrent output protection and backdrive protection for an HDMI port in a single 38-Pin TSSOP package. The CM2020-00TROSTR-ND also incorporates a silicon overcurrent protection device for +5 V supply voltage output to the connector. The applications of the CM2020-00TROSTR-ND are PC, Consumer Electronics, Set Top Box, DVDRW Players.

Parametrics

CM2020-00TROSTR-ND absolute maximum ratings: (1)VCC5V, VCCLV:6.0 V; (2)DC Voltage at any Channel Input:6.0 V; (3)Storage Temperature Range:-65 to +150℃.

Features

CM2020-00TROSTR-ND features: (1)HDMI 1.3 Compliant; (2)0.05 pF Matching Capacitance between the TMDS Intra-Pair; (3)Overcurrent Output Protection; (4)Level Shifting/Isolation Circuitry; (5)8 kV Contact Discharge; (6)15 kV Air Discharge; (7)Matched 0.5 mm Trace Spacing (TSSOP); (8)Simplified Layout for HDMI Connectors; (9)Backdrive Protection; (10)These Devices are Pb?Free and are RoHS Compliant.

Diagrams

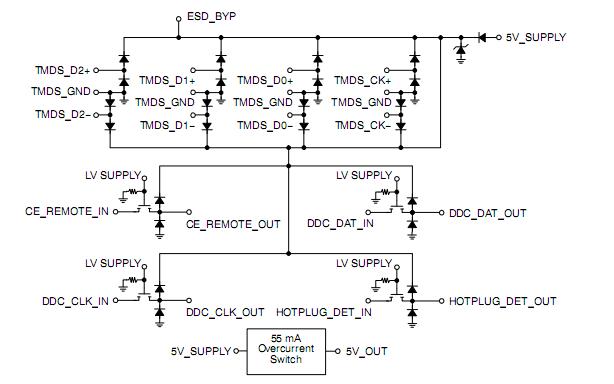

CM2020-00TROSTR-ND circuit diagram
