Product Summary
The L78M06CDT-TR is a three-terminal positive regulator. It is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. The L78M06CDT-TR can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, the device can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, the L78M06CDT-TR can be used with external components to obtain adjustable voltage and currents.
Parametrics
L78M06CDT-TR absolute maximum ratings: (1)VI, DC Input Voltage (for VO=5 to 18V): 35V; (for VO= 20, 24V): 40V; (2)IO, Output Current: Internally Limited mA; (3)PD, Power Dissipation: Internally Limited mW; (4)Tstg Storage Temperature Range -65 to +150℃; (5)Top Operating Junction Temperature Range 0 to +150℃.
Features
L78M06CDT-TR features: (1)output current to 0.5A; (2)output voltages of 5; 6; 8; 9; 12; 15; 18; 20; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

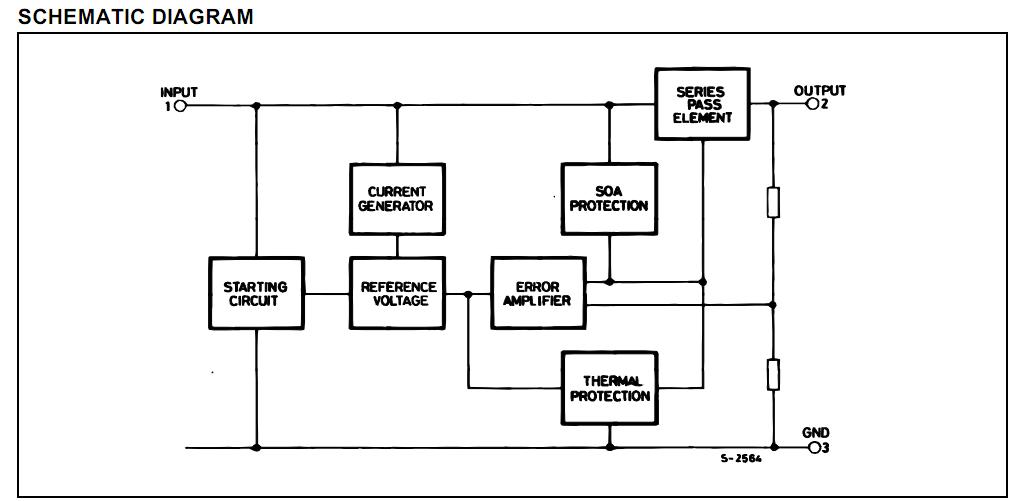

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L78M06CDT-TR |
STMicroelectronics |
Linear Regulators - Standard 6.0V 0.5A Positive |
Data Sheet |
|
|
||||||||||||
