PIC12F615-I/SN-ND

1KX14, 8SOIC, 1.5KB, flash-based, 8-Bit, CMOS microcontroller, Programmable code protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.60

PartNumber:: PIC12F615-I/SN-ND

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mr Maxisua zhou's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-22

From Other Seller

Part Number:PIC12F615-I/SN-ND
US $0.40 - 0.60
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

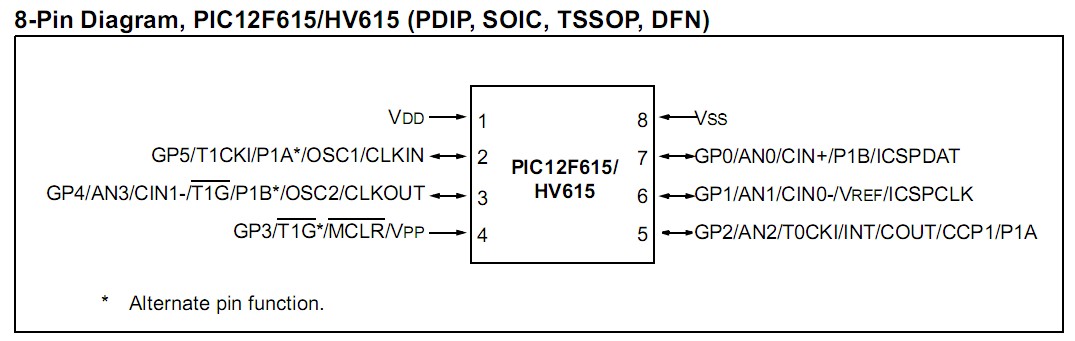

The PIC12F615-I/SN-ND is a 8-Pin flash-based, 8-Bit CMOS microcontroller.

Parametrics

PIC12F615-I/SN-ND absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation(1): 800 mW; (7)Maximum current out of VSS pin: 95 mA; (8)Maximum current into VDD pin: 95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by GPIO: 90 mA; (14)Maximum current sourced GPIO: 90 mA.

Features

PIC12F615-I/SN-ND features: (1)Industrial and Extended Temperature range; (2)Power-on Reset (POR); (3)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (4)Brown-out Reset (BOR); (5)Watchdog Timer (WDT) with independent oscillator for reliable operation; (6)Multiplexed Master Clear with pull-up/input pin; (7)Programmable code protection; (8)High Endurance Flash: 100,000 write Flash endurance.
