Product Summary

The STP12NM50FP is an N-channel 500V, 0.3W, 12A TO-220/TO-220FP/IPAK MDmesh power MOSFET. The MDmesh is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company PowerMESH horizontal layout. The STP12NM50FP has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics.

Parametrics

STP12NM50FP absolute maximum ratings: (1)Gate- source Voltage: ± 30 V; (2)Drain Current (continuous) at TC = 25℃: 12 A; (3)Drain Current (continuous) at TC = 100℃: 7.5 A; (4)Drain Current (pulsed): 48 A; (5)Total Dissipation at TC = 25℃: 35 W; (6)Derating Factor: 0.28 W/℃; (7)Insulation Winthstand Voltage (DC): 2500 V; (8)Peak Diode Recovery voltage slope: 15 V/ns; (9)Operating Junction Temperature: -65 to 150 ℃; (10)Storage Temperature: -65 to 150 ℃.

Features

STP12NM50FP features: (1)Typical RDS(on)=0.30Ω; (2); (3)Low input capacitance and gate charge; (4)100% avalanche tested; (5)Low gate input resistance; (6)Tight process control and high manufacturing yields.

Diagrams

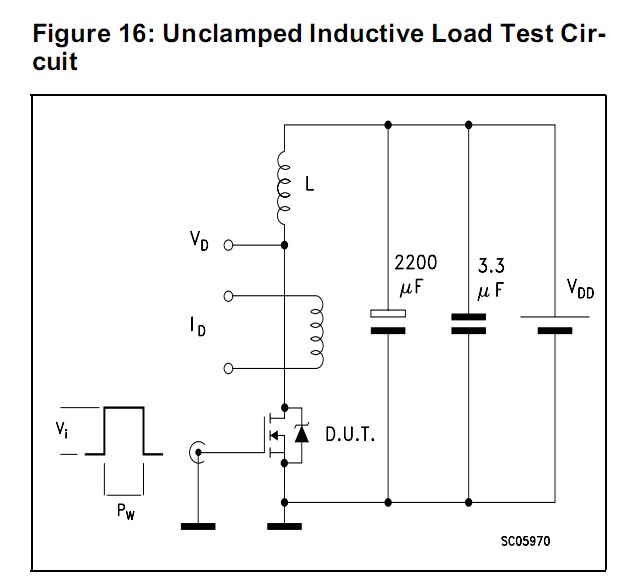

STP12NM50FP test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STP12NM50FP
STP12NM50FP
STMicroelectronics
MOSFET N-Ch 500 Volt 12 Amp
Data Sheet
0-1: $2.21
1-10: $1.84
10-100: $1.61
100-250: $1.46
