TLC2543CN

Product Summary

The TLC2543CN is 12-bit analog-todigital converter. The TLC2543CN has three control inputs [chip select (CS), the input-output clock (I/O CLOCK), and the address input (DATA INPUT)] and is designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The TLC2543CN allows high-speed data transfers from the host. In addition to the high-speed converter and versatile control capability, the TLC2543CN has an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages. The sample-and-hold function is automatic. At the end of conversion, the end-of-conversion (EOC) output goes high to indicate that conversion is complete. The TLC2543CN is characterized for operation from TA = 0℃ to 70℃.

Parametrics

TLC2543CN absolute maximum ratings: (1)Supply voltage range, VCC: –0.5V to 6.5V; (2)Input voltage range, VI (any input): –0.3V to VCC + 0.3V; (3)Output voltage range, VO: –0.3V to VCC + 0.3V; (4)Positive reference voltage, Vref+: VCC + 0.1V; (5)Negative reference voltage, Vref–: –0.1V; (6)Peak input current, II (any input): ±20mA; (7)Peak total input current, II (all inputs): ±30mA; (8)Operating free-air temperature range, TA: 0℃ to 70℃; (9)Storage temperature range, Tstg: –65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260℃.

Features

TLC2543CN features: (1)12-Bit-Resolution A/D Converter; (2)10-ms Conversion Time Over Operating Temperature; (3)11 Analog Input Channels; (4)3 Built-In Self-Test Modes; (5)Inherent Sample-and-Hold Function; (6)Linearity Error . . . ±1 LSB Max; (7)On-Chip System Clock; (8)End-of-Conversion Output; (9)Unipolar or Bipolar Output Operation (Signed Binary With Respect to 1/2 the Applied Voltage Reference); (10)Programmable MSB or LSB First; (11)Programmable Power Down; (12)Programmable Output Data Length; (13)CMOS Technology; (14)Application Report Available.

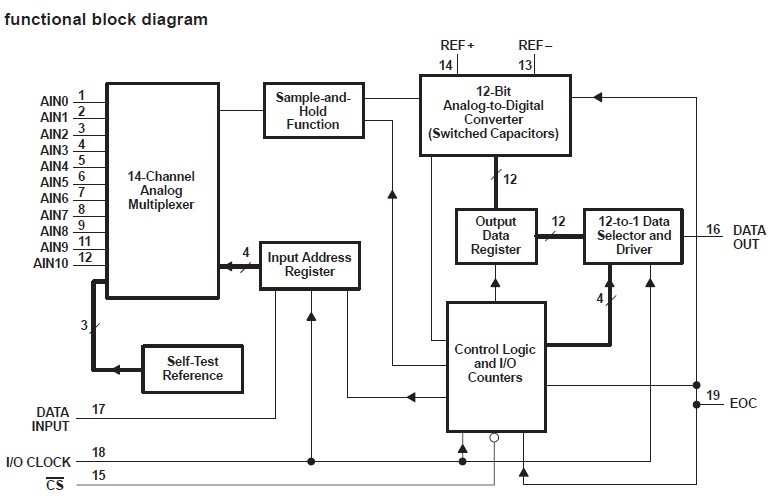

Diagrams
