Product Summary

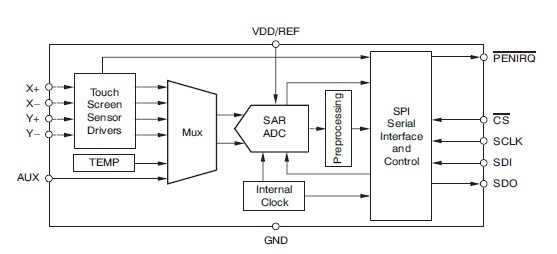

The TSC2008IRGVT is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on advanced low-voltage processors. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. In addition to these standard features, the TSC2008IRGVT offers preprocessing of the touch screen measurements to reduce bus loading, thus reducing the consumption of host processor resources that can then be redirected to more critical functions.

Parametrics

TSC2008IRGVT absolute maximum ratings: (1)Voltage range VDD to GND: –0.3 to +5 V; (2)Digital input voltage to GND: –0.3 to VDD + 0.3 V; (3)Digital output voltage to GND: –0.3 to VDD + 0.3 V; (4)Power dissipation: (TJ Max - TA)/θJA; (5)Thermal impedance, θJA, WCSP, Low-K: 113 ℃/W; High-K: 62 ℃/W; (6)Operating free-air temperature range, TA: –40 to +85 ℃; (7)Storage temperature range, TSTG: –65 to +150 ℃; (8)Junction temperature, TJ Max: +150 ℃; (9)Lead temperature, Vapor phase (60 sec): +215 ℃; Infrared (15 sec): +220 ℃.

Features

TSC2008IRGVT features: (1)4-Wire Touch Screen Interface; (2)Single 1.2V to 3.6V Supply/Reference; (3)Ratiometric Conversion; (4)Effective Throughput Rate: Up to 20kHz (8-Bit) or 10kHz (12-Bit); (5)Preprocessing to Reduce Bus Activity; (6)High-Speed SPI (up to 25MHz).
