Product Summary
The CS4272-CZZ is a high-performance, integrated audio CODEC. The CS4272-CZZ performs stereo analog-to-digital (A/D) and digital-to-analog (D/A) conversion of up to 24-bit serial values at sample rates up to 192 kHz.
Parametrics
CS4272-CZZ absolute maximum ratings: (1)DC Power Supplies: Analog, VA: -0.3 to 6.0V; logic, VL: -0.3 to 6.0V; digital, VD: -0.3 to 6.0V; (2)Input Current, Iin: ±10 mA; (3)Analog Input Voltage, VIN: GND-0.3 to VA+0.3 V; (4)Digital Input Voltage, VIND: -0.3 to VL+0.3 V; (5)Ambient Operating Temperature (Power Applied), TA: -50 to +95℃; (6)Storage Temperature, Tstg: -65 to +150℃.
Features
CS4272-CZZ features: (1)High Performance: 114 dB Dynamic Range; -100 dB THD+N; (2)Up to 192 kHz Sampling Rates; (3)Differential Analog Architecture; (4)Volume Control with Soft Ramp: 1 dB Step Size; Zero Crossing Click-free Transitions; (5)Selectable Digital Filters: Fast and Slow Roll Off; (6)ATAPI Mixing Functions; (7)Selectable Serial Audio Interface Formats: Left Justified up to 24-bit; I2S up to 24-bit; Right Justified 16-, 18-, 20-, and 24-Bit; (8)Control Output for External Muting; (9)Selectable 50/15 μs De-emphasis.

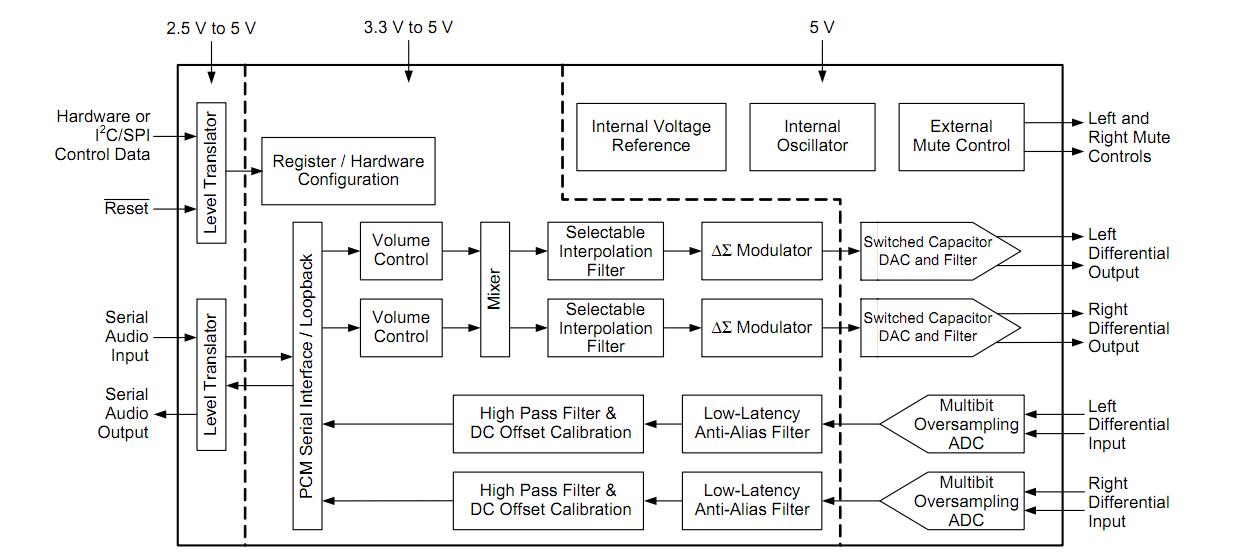

Diagrams
