Product Summary

The CS5513-BSZ is an analog-to-digital converter (ADC) which uses charge-balance techniques to achieve 20-bit performance. The ADC is available in a space-efficient, 8-pin SOIC package and are optimized for measuring signals in weigh scale, process control, and other industrial applications.

Parametrics

CS5513-BSZ absolute maximum ratings: (1)DC Power Supplies, Positive, V+: -0.3 to 6.0V; Negative, V-: -6.0 to 0.3V; (2)Input Current, Any Pin Except Supplies, IIN: ±10mA; (3)Output Current, IOUT: ±25mA; (4)Package Power Dissipation, PDN: 400 mW; (5)Analog Input Voltage AIN pins, VINA: (V-)+(-0.3) to (V+)+0.3 V; (6)Digital Input Voltage, VIND: (V-)+(-0.3) to (V+)+0.3 V; (7)Ambient Operating Temperature, TA: -40 to +85℃; (8)Storage Temperature, Tstg: -65 to +150℃.

Features

CS5513-BSZ features: (1)Delta-sigma Analog-to-digital Converter: Linearity Error: 0.0015% FS; Noise-free Resolution: Up to 17 Bits; (2)Differential Bipolar Analog Inputs; (3)VREF Input Range from 250 mV to 5 V; (4)16 to 326 Sps Output Word Rate; (5)On-chip Oscillator; (6)Power Supply Configurations: V+ = 5 V, V- = 0 V; Multiple Dual-supply Arrangements; (7)Low Power Consumption: Normal Mode, 2.5 mW; Sleep Mode, 10 μW; (8)Low-cost, Compact, 8-pin Package; (9)Lead-free Device Package Options.

Diagrams

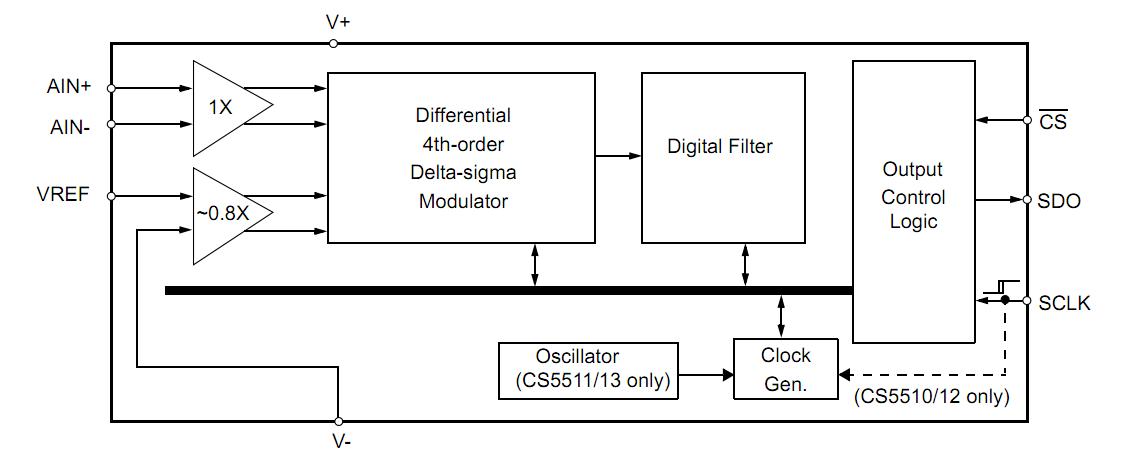

CS5513-BSZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CS5513-BSZ
CS5513-BSZ

Cirrus Logic

ADC (A/D Converters) 20-Bit Delta Sigma ADC Int. OSC

Data Sheet

0-1: $2.76
1-25: $2.53
25-50: $2.44
50-100: $2.35
CS5513-BSZR
CS5513-BSZR

Cirrus Logic

ADC (A/D Converters) IC 20-Bit 8-Pin Delta Sigma ADC

Data Sheet

0-1495: $1.90
1495-2000: $1.90
