Product Summary
The CS5530-ISZ is a 24-bit ADC with Ultra-low-noise Amplifier designed to work in conjunction with an AMD Geode GX1 processor. Together, the Geode GX1 processor and CS5530A-UCE companion device provide a system-level solution well suited for the high performance needs of a host of devices which include digital set-top boxes and thin client devices.
Parametrics
CS5530-ISZ absolute maximum ratings: (1)Operating Case Temperature: 0 to 110 ℃; (2)Storage Temperature: –65 to 150 ℃; (3)Supply Voltage: 4.0 V; (4)Voltage On Any Pin: –0.5 to 5.5 V; (5)Input Clamp Current, IIK: –0.5 to 10 mA; (6)Output Clamp Current, IOK: 25 mA.
Features
CS5530-ISZ features: (1)Processor support; (2)PCI bus master/slave interface; (3)ISA bus interface; (4)AT compatibility logic; (5)IDE controllers; (6)Power management: GPIO interfaces, Traps, Events, Timers; (7)Joystick/Game port interface; (8)Virtual audio support hardware; (9)Video display, which includes MPEG accelerator, RAMDAC, and video ports; (10)USB controller.

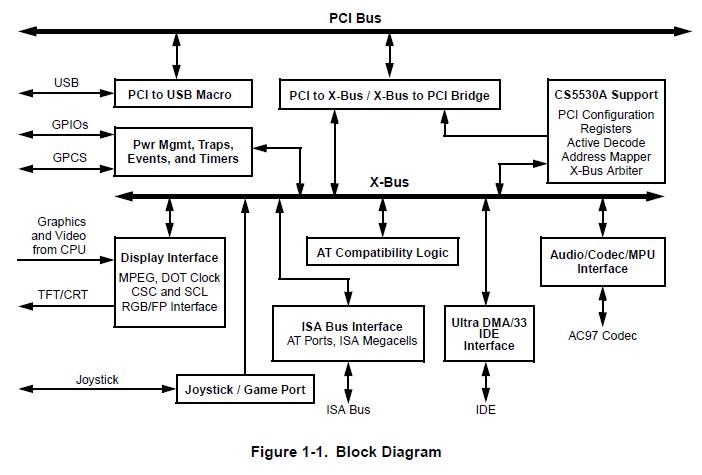

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5530-ISZ |
Cirrus Logic |
ADC (A/D Converters) 24-Bit 1-Ch Low Noise ADC |
Data Sheet |
|
|
||||||||||||
|
CS5530-ISZR |
Cirrus Logic |
ADC (A/D Converters) IC 24-Bit 1-ch Low Noise ADC |
Data Sheet |
|
|
||||||||||||
