Product Summary

The EP3C5F256C8N is a FPGA device of cyclone III series.

Parametrics

EP3C5F256C8N absolute maximum ratings: (1)Supply voltage for internal logic, VCCINT: –0.5 to 1.8V; (2)Supply voltage for output buffers, VCCIO: –0.5 to 3.9V; (3)Supply voltage (analog) for phase-locked loop (PLL) regulator, VCCA: –0.5 to 3.75V; (4)Supply voltage (digital) for PLL, VCCD_PLL: –0.5 to 1.8V; (5)DC input voltage, VI: –0.5 to 3.95V.

Features

EP3C5F256C8N features: (1)DC output current, per pin, IOUT: -25 to 40mA; (2)Electrostatic discharge voltage using the human body model, VESDHBM: ±2000V max; (3)Electrostatic discharge voltage using the charged device model, VESDCDM: ±500V max; (4)Storage temperature, TSTG: –65 to 150℃; (5)Operating junction temperature, TJ: –40 to 125℃.

Diagrams

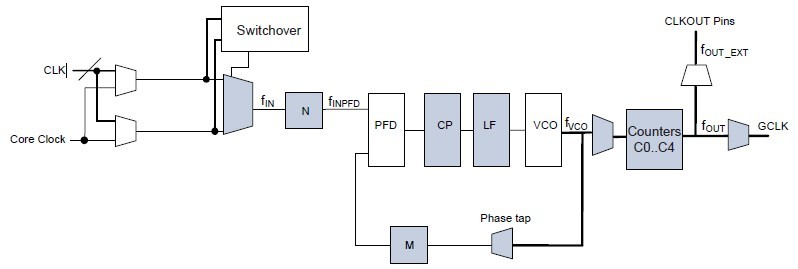

EP3C5F256C8N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP3C5F256C8N
EP3C5F256C8N


IC CYCLONE III FPGA 5K 256-FBGA

Data Sheet

0-1: $8.94
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP3C10E144C7
EP3C10E144C7


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $13.86
EP3C10E144C7N
EP3C10E144C7N


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $13.86
EP3C10E144C8
EP3C10E144C8


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $11.52
EP3C10E144C8N
EP3C10E144C8N


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $11.52
EP3C10E144I7
EP3C10E144I7


IC CYCLONE III FPGA 10K 144 EQFP

Data Sheet

0-120: $16.86
EP3C10E144I7N
EP3C10E144I7N


IC CYCLONE III FPGA 10K 144 EQFP

Data Sheet

0-1: $17.28
