Product Summary
The EP9302-IQZ is an ARM920T-based system-on-a-chip designed with a large peripheral set targeted to a variety of applications: Industrial controls, Digital media servers, Integrated home media gateways, Digital audio jukeboxes, Streaming audio players, Set-top boxes, Point-of-sale terminals, Thin clients, Biometric security systems, GPS & fleet management systems, Educational toys, Industrial computers, Industrial hand-held devices, Voting machines and Medical equipment.
Parametrics
EP9302-IQZ absolute maximum ratings: (1)Total Power Dissipation: 2 W; (2)Input Current per Pin, DC (Except supply pins): ±10 mA; (3)Output current per pin, DC: ±50mA; (4)Digital Input voltage: -0.3 to RVDD+0.3 V; (5)Storage temperature: -40 to +125℃.
Features
EP9302-IQZ features: (1)200-MHz ARM920T Processor; (2)16-bit SDRAM Interface (up to 4 banks); (3)16-bit SRAM / FLASH / ROM ; (4)Serial EEPROM Interface; (5)1/10/100 Mbps Ethernet MAC; (6)Two UARTs; (7)Two-port USB 2.0 Full-speed Host (OHCI)(12 Mbits per second); (8)IrDA Interface; (9)ADC; (10)Serial Peripheral Interface (SPI) Port; (11)12 Direct Memory Access (DMA) Channels; (12)Real-time Clock with Software Trim ; (13)Dual PLL controls all clock domains; (14)Watchdog Timer; (15)Two General-purpose 16-bit Timers; (16)One General-purpose 32-bit Timer; (17)One 40-bit Debug Timer; (18)Interrupt Controller; (19)Boot ROM; (20)Package: 208-pin LQFP.

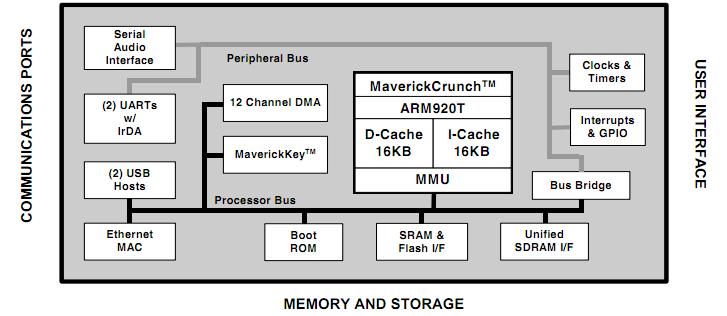

Diagrams
