Product Summary
The FMS6501MSA28X is a 12 Input 9 Output Video Switch Matrix with Input Clamp, Input Bias Circuitry, and Output Drivers. The FMS6501MSA28X provides 12 inputs which can be routed to any of 9 outputs. Each input can be routed to one or more outputs but only one input may be routed to any output. The input to output routing is controlled via an I2C compatible digital interface. The applications of the FMS6501MSA28X include Cable and Satellite set top boxes, TV and HDTV Sets, A/V Switchers Personal Video Recorders (PVR), Security / Surveillance, Video Distribution and Automotive (In-Cabin Entertainment).
Parametrics
FMS6501MSA28X absolute maximum ratings: (1)DC Supply Voltage: -0.3 to 6 V; (2)Analog and Digital I/O: -0.3 to Vcc + 0.3 V; (3)Output Current Any One Channel, Do Not Exceed: 40 mA.
Features
FMS6501MSA28X features: (1)12 × 9 Crosspoint Matrix; (2)Supports SD, PS, and HD 1080i/1080p Video; (3)Input Clamp / Bias Circuitry; (4)AC or DC-Coupled Inputs; (5)AC or DC-Coupled Outputs; (6)Dual Load(75Ω) Output Drivers with High Impedance Disable; (7)One-to-One or One-to-Many Input to Output Switching; (8)Programmable Gain: +6, +7, +8 or +9dB; (9)I2CTM Compatible Digital Interface, Standard Mode; (10)3.3V or 5V single supply operation; (11)Lead (Pb) Free SSOP-28 Package.

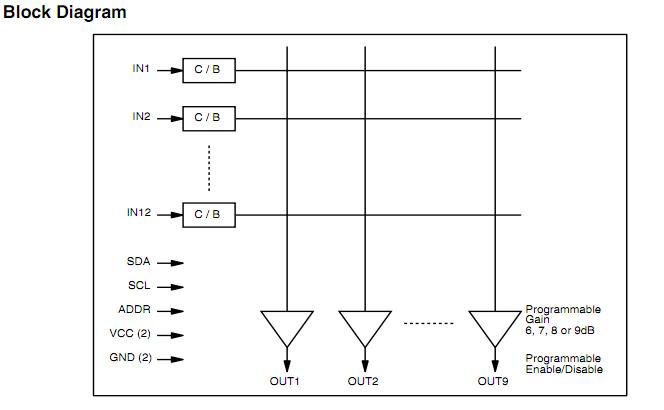

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FMS6501MSA28X |
Fairchild Semiconductor |
Video ICs 12 Input 9 Output VideoSwtch |
Data Sheet |
|
|
||||||||||||
