Product Summary
The MAX3815CCM+D cable equalizer automatically provides compensation for DVI, HDMI, DFP, PanelLink, and ADC cables. It extends the usable cable distance up to 36 meters. The MAX3815CCM+D is designed to equalize signals encoded in the transition-minimized differential signaling (TMDS) format. The MAX3815CCM+D features four CML-differential inputs and outputs (three data and one clock). It provides a lossof-signal (LOS) output that indicates loss-of-clock signal.
Parametrics
MAX3815CCM+D absolute maximum ratings: (1)Supply Voltage, VCC: -0.5V to +4.0V; (2)Voltage at All I/O Pins: -0.5V to (VCC + 0.7V); (3)Voltage between any CML I/O Complementary Pair: ±3.3V; (4)Continuous Power Dissipation (TA = +70℃): 48-Pin TQFP-EP (derate 36.2mW/℃ above +70℃): 2896mW; (5)Operating Junction Temperature Range: -55℃ to +150℃; (6)Storage Temperature Range: -55℃ to +150℃; (7)Die Attach Temperature: +400℃.
Features

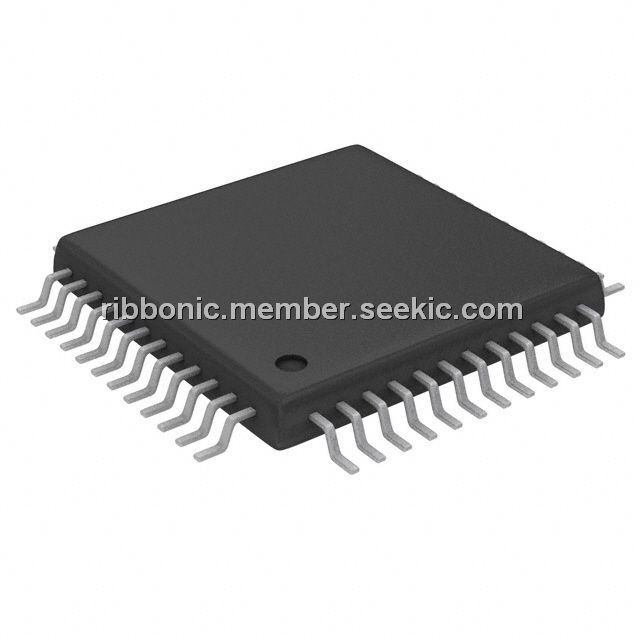

MAX3815CCM+D features: (1)Extends TMDS Cable Reach to Projectors or Monitors Using DVI, DFP, PanelLink, ADC, or; (2)HDMI Interfaces; (3)Extends TMDS Interface Length as Follows: 0 to 50 Meters Over DVI-Cable, 24 AWG STP (Shielded-Twisted Pair); 0 to 36 Meters Over DVI-Cable, 28 AWG STP; 0 to 30 Meters Over DVI-Cable, 30 AWG STP; (4)Compatible with DTV Resolutions 480i, 480p, 720p, 1080i, and 1080p; (5)Compatible with Computer Resolutions VGA, SVGA, XGA, SXGA, UXGA; (6)Fully Automatic Equalization Up to 40dB at 825MHz (1.65Gbps), No System Control Required; (7)3.3V Power Supply; (8)Power Dissipation of 0.6W (typ); (9)7mm x 7mm 48-Pin TQFP Lead-Free Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3815CCM+D |
Maxim Integrated Products |
Equalizers TMDS Digi Video EQ for HDMI/DVI Cables |
Data Sheet |
|
|
||||||||||||
|
MAX3815CCM+DG05 |
Maxim Integrated Products |
Equalizers TMDS Digi Video EQ for HDMI/DVI Cables |
Data Sheet |
|
|
||||||||||||
