Product Summary
The STM8S103F3P6 access line 8-bit microcontroller offers 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S103F3P6 microcontroller family reference manual (RM0016) refers to devices in this family as low-density. The STM8S103F3P6 provides the following benefits: performance, robustness, and reduced system cost.
Parametrics
STM8S103F3P6 absolute maximum ratings: (1)Supply voltage, VDDx-VSS: -0.3 to 6.5V; (2)Input voltage on true open drain pins, VIN: VSS-0.3 to 6.5V; (3)Input voltage on any other pin, VIN: VSS-0.3 to VDD+0.3V; (4)Variations between different power pins, |VDDx-VDD|: 50mV; (5)Variations between all the different ground, |Vssx-Vss|: 50mV.
Features
STM8S103F3P6 features: (1)16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline; (2)Extended instruction set Memories; (3)Program memory: 8 Kbytes Flash; (4)data retention 20 years at 55℃ after 10 kcycles; (5)Data memory: 640 bytes true data EEPROM; (6)endurance 300 kcycles; (7)RAM: 1 Kbytes Clock, reset and supply management; (8)2.95 to 5.5 V operating voltage; (9)Permanently active, low consumption power-on and power-down reset.

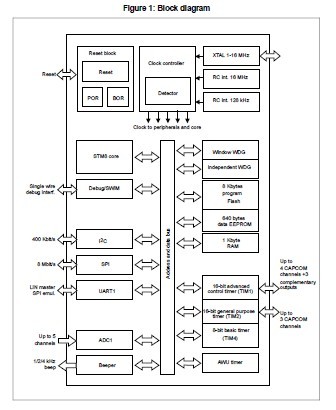

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8S103F3P6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) Access Line 16 MHz 8-bit MCU 32 Kbyt |
Data Sheet |
|
|
||||||||||||
|
STM8S103F3P6TR |
STMicroelectronics |
8-bit Microcontrollers (MCU) Access line MCU 8Kbyt 16 MHz |
Data Sheet |
|
|
||||||||||||
