Product Summary
The LM317T is an adjustable 3-terminal positive voltage regulator. It is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. The LM317T is exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM317T is packaged in standard transistor packages which are easily mounted and handled.
Parametrics
LM317T absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input-Output Voltage Differential: +40V, -0.3V; (3)Storage Temperature: -65 to +150℃; (4)Lead Temperature: 300℃; (5)ESD Tolerance: 3 kV.
Features
LM317T features: (1)Guaranteed 1% output voltage tolerance; (2)Guaranteed max. 0.01%/V line regulation; (3)Guaranteed max. 0.3% load regulation; (4)Guaranteed 1.5A output current; (5)Adjustable output down to 1.2V; (6)Current limit constant with temperature; (7)P+ Product Enhancement tested; (8)80 dB ripple rejection; (9)Output is short-circuit protected.

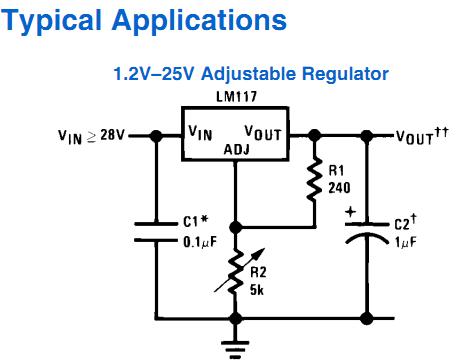

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317T |
STMicroelectronics |
Linear Regulators - Standard 1.2-37V Adj Positive 1.5 Amp Output |
Data Sheet |
|
|
||||||||||||
 |
LM317T (KA317) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
LM317T/LB01 |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM317T/LF01 |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM317T/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard 3-TERMINAL ADJ REG |
Data Sheet |
|
|
||||||||||||
|
LM317T_Q |
Fairchild Semiconductor |
Linear Regulators - Standard 1.5A Adj Voltage Regulator |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM317T-DG |
STMicroelectronics |
Linear Regulators - Standard Dual Guage ADJ 1.2V to 37V 1.5A |
Data Sheet |
|
|
||||||||||||
|
LM317TG |
ON Semiconductor |
Linear Regulators - Standard 1.5A ADJ 1.2-37V Positive |
Data Sheet |
|
|
||||||||||||
