TAS5352ADDVR

250W, 44TSSOP, TAS5352ADDVR, -0.3 V to 13.2 V, 192 kHz to 432 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~9.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~9.50

PartNumber:: TAS5352ADDVR

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mr Maxisua zhou's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:TAS5352ADDVR
US $4.00 - 9.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

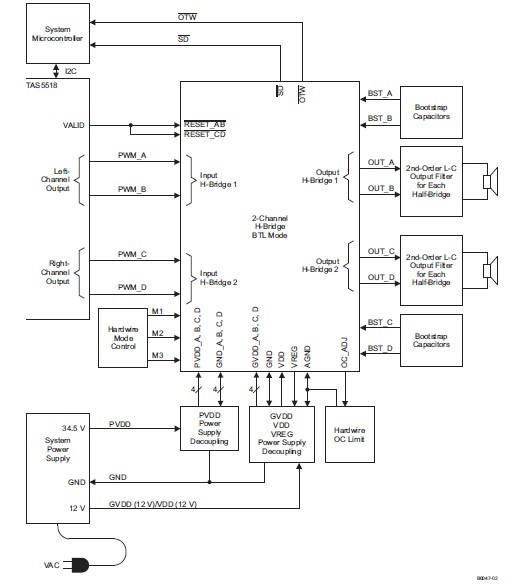

The TAS5352ADDVR is a high-performance, integrated stereo digital amplifier power stage designed to drive a 4-Ω bridge-tied load (BTL) at up to 125 W per channel with low harmonic distortion, low integrated noise, and low idle current. The TAS5352ADDVR has a complete protection system integrated on-chip, safeguarding the device against a wide range of fault conditions that could damage the system. The applications of the TAS5352ADDVR are: Mini/Micro Audio System, PurePath Digital, DVD Receiver, Home Theater.

Parametrics

TAS5352ADDVR absolute maximum ratings: (1)VDD to AGND: -0.3 V to 13.2 V; (2)GVDD_X to AGND: -0.3 V to 13.2 V; (3)VREG to AGND: -0.3 V to 4.2 V; (4)GND_X to GND: -0.3 V to 0.3 V; (5)GND_X to AGND: -0.3 V to 0.3 V; (6)GND to AGND: -0.3 V to 0.3 V; (7)Maximum continuous sink current (SD, OTW): 9 mA; (8)Maximum operating junction temperature range, TJ: 0℃ to 125℃; (9)Storage temperature: –40℃ to 125℃; (10)Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (11)Minimum pulse duration, low: 30 ns.

Features

TAS5352ADDVR features: (1)Supports PWM Frame Rates of 192 kHz to 432 kHz; (2)Resistor-Programmable Current Limit; (3)Standalone Protection Recovery; (4)Error Reporting, 3.3-V and 5.0-V Compliant; (5)EMI Compliant When Used With Recommended System Design.
