Product Summary

The TPA102DGN is a stereo audio power amplifier packaged in an 8-pin PowerPADE MSOP package capable of delivering 150 mW of continuous RMS power per channel into 8-W loads. TPA102DGN amplifier gain is externally configured by means of two resistors per input channel and does not require external compensation for settings of 1 to 10.

Parametrics

TPA102DGN absolute maximum ratings:(1)VDD, Supply voltage: 6 V; (2)VI, Input voltage: -0.3 V to VDD + 0.3 V;Continuous total power dissipation: Internally limited; (3)TJ, Operating junction temperature range: -40℃ to 150℃; (4)Tstg, Storage temperature range: -65℃ to 150℃; Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPA102DGN features:(1)150-mW Stereo Output; (2)PC Power Supply Compatible:Fully Specified for 3.3-V and 5-V operation; Operation to 2.5 V; (3)Pop Reduction Circuitry; (4)Internal Midrail Generation; (5)Thermal and Short-Circuit Protection; (6)Surface-Mount Packaging:PowerPAD MSOP;SOIC; (7)Pin Compatible With LM4880 and LM4881.

Diagrams

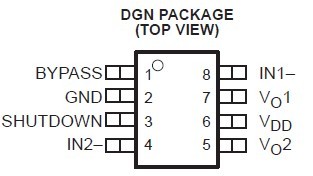

TPA102DGN top view

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPA102DGN
TPA102DGN
Texas Instruments
Audio Amplifiers 150mW Stereo
Data Sheet
0-1: $1.16
1-25: $0.96
25-100: $0.83
100-250: $0.79
TPA102DGNG4
TPA102DGNG4
Texas Instruments
Audio Amplifiers 150mW Stereo
Data Sheet
0-1: $0.91
1-25: $0.85
25-100: $0.59
100-250: $0.58
TPA102DGNR
TPA102DGNR
Texas Instruments
Audio Amplifiers 150mW Stereo
Data Sheet
0-1790: $0.50
1790-2000: $0.47
2000-2500: $0.47
2500-5000: $0.44
TPA102DGNRG4
TPA102DGNRG4
Texas Instruments
Audio Amplifiers 150mW Stereo
Data Sheet
0-1930: $0.46
1930-2000: $0.46
2000-2500: $0.46
2500-5000: $0.44
